1411102

Active

Phoenix Contact

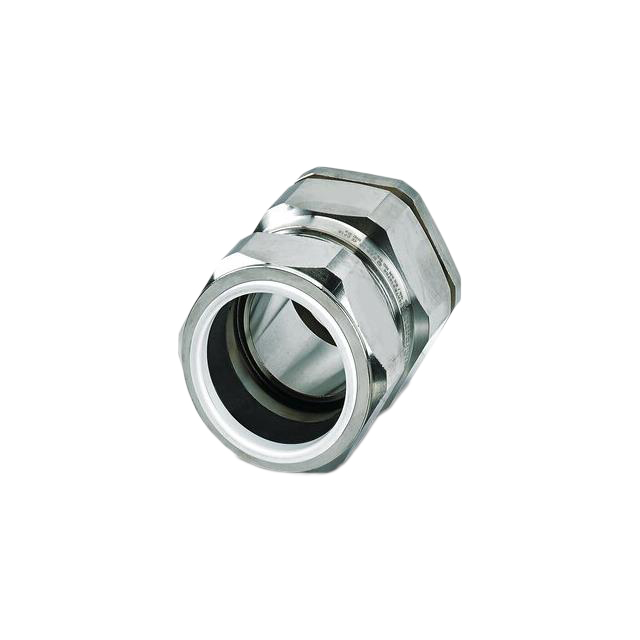

CABLE GLND 54.6-65.9MM M63 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLND 54.6-65.9MM M63 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1411102

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68, IP66, IP67
Material	Brass, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max)	65.9 mm
Outside Cable Diameter (Max) [Max] [diameter]	2.594 in
Outside Cable Diameter (Min) [Min] [diameter]	54.6 mm
Outside Cable Diameter (Min) [Min] [diameter]	2.15 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M63
Type	Cable Gland

Part	Material	Ingress Protection	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Thread Size	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)
Phoenix Contact 1411090	Brass Nickel Plated	IP66 IP67 IP68	O-Ring Seal	130 °C	-60 °C	0.591 in	15 mm	M20	Cable Gland	0.823 "	20.9 mm	0.492 in	12.5 mm	Silver
Phoenix Contact 1411094	Brass Nickel Plated	IP66 IP67 IP68	O-Ring Seal	130 °C	-60 °C	0.591 in	15 mm	M32	Cable Gland			0.933 in		Silver	23.7 mm	33.9 mm	1.335 "
Phoenix Contact 1411102	Brass Nickel Plated	IP66 IP67 IP68	O-Ring Seal	130 °C	-60 °C	0.591 in	15 mm	M63	Cable Gland			2.15 in		Silver	54.6 mm		2.594 in	65.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 360.46

General part information

Cable Gland Brass, Nickel Plated M63 Silver
