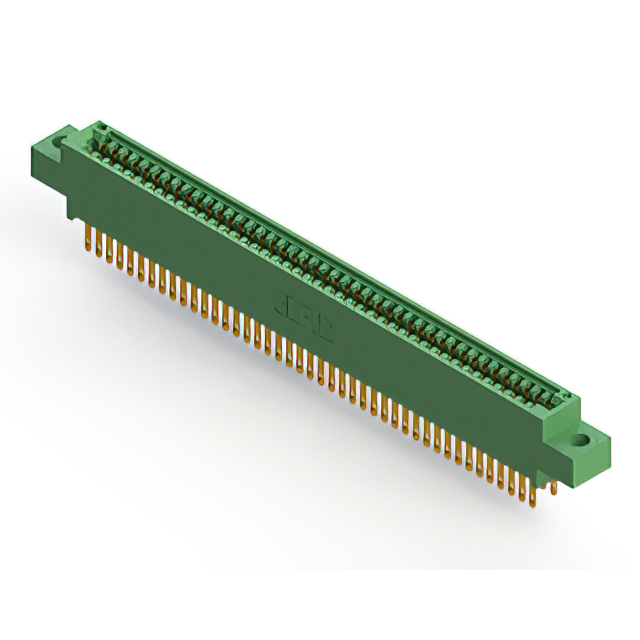

845-086-500-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-086-500-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-086-500-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 86 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
845-086 Series
...
| Part | Termination | Mounting Type | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Number of Positions | Contact Type | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Gender | Contact Material | Contact Finish | Color | Number of Positions/Bay/Row [custom] | Termination Rows | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder Eyelet(s) | Through Hole | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | |||
EDAC Inc. | Solder | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | Card Extender | ||||
EDAC Inc. | Solder | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | Solder Eyelet(s) | Through Hole | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | |||||
EDAC Inc. | Wire Wrap | Through Hole | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | |||||
EDAC Inc. | Solder | Through Hole | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Solder | Through Hole | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | |||||
EDAC Inc. | Solder | Through Hole | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | Side Mount Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Solder | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 | Card Extender | ||||
EDAC Inc. | Wire Wrap | Through Hole | 2 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 86 | Cantilever | Dual | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Copper Alloy | Gold | Green | 43 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-086 Series
86 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
