AP62150WU-EVM

Active

Diodes Inc

EVAL BOARD FOR AP62150

Deep-Dive with AI

Search across all available documentation for this part.

AP62150WU-EVM

Active

Diodes Inc

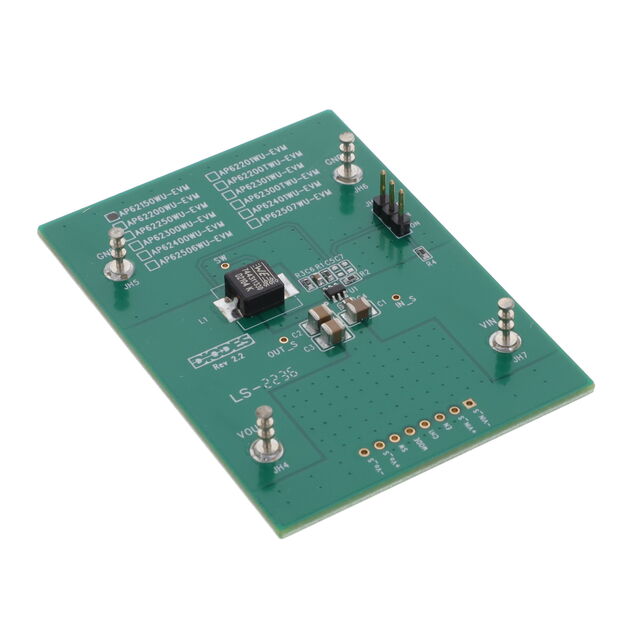

EVAL BOARD FOR AP62150

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP62150WU-EVM

Board Type	Fully Populated
Current - Output	1.5 A
Frequency - Switching	1.3 MHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP62150
Voltage - Input [Max]	18 V
Voltage - Input [Min]	4.2 V
Voltage - Output [Max]	7 V
Voltage - Output [Min]	0.8 V

AP62150 Series

4.2V TO 18V INPUT, 1.5A LOW IQ SYNCHRONOUS BUCK CONVERTER

Part	Voltage - Output [Min]	Voltage - Output [Max]	Supplied Contents	Board Type	Current - Output	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Utilized IC / Part	Frequency - Switching	Regulator Topology
Diodes Inc AP62150WU-EVM	0.8 V	7 V	Board(s)	Fully Populated	1.5 A	Non-Isolated	1	18 V	4.2 V	DC/DC Step Down	AP62150	1.3 MHz	Buck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.39

Description

General part information

AP62150 Series

The AP62150 is a 1.5A, synchronous buck converter with a wide input voltage range of 4.2V to 18V. The device fully integrates a 90mΩ highside power MOSFET and a 65mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.
