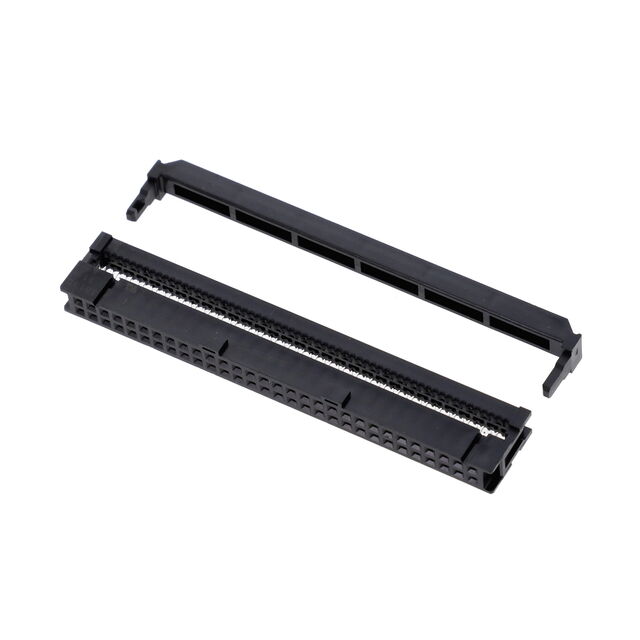

XG4M-6031-T

Active

Omron Electronics Inc-EMC Div

CONN RCPT 60POS IDC 28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XG4M-6031-T

Active

Omron Electronics Inc-EMC Div

CONN RCPT 60POS IDC 28AWG GOLD

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG4M-6031-T

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	60
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

XG4M Series

Part	Row Spacing [x]	Row Spacing	Cable Termination	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Features	Wire Type	Color	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Wire Gauge	Number of Positions	Number of Positions	Fastening Type
Omron Electronics Inc-EMC Div XG4M-4030	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	40
Omron Electronics Inc-EMC Div XG4M-1630-T	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key Strain Relief	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG		16
Omron Electronics Inc-EMC Div XG4M-4030-T	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key Strain Relief	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	40
Omron Electronics Inc-EMC Div XG4M-3430-U	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key Strain Relief	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	34		Latch Lock/Eject Hooks
Omron Electronics Inc-EMC Div XG4M-2030-U	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key Strain Relief	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	20		Latch Lock/Eject Hooks
Omron Electronics Inc-EMC Div XG4M-3430	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	34
Omron Electronics Inc-EMC Div XG4M-6431	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	64
Omron Electronics Inc-EMC Div XG4M-6430-U	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key Strain Relief	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	64		Latch Lock/Eject Hooks
Omron Electronics Inc-EMC Div XG4M-6031-T	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key Strain Relief	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	60
Omron Electronics Inc-EMC Div XG4M-3030-T	0.1 in	2.54 mm	IDC	2.54 mm	0.1 in	Free Hanging (In-Line)	2	Feed Through Polarizing Key Strain Relief	Ribbon Cable	Black	Gold	Female Socket	5.9 µin	0.15 µm	Receptacle	28 AWG	30

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.72
		10	$ 3.37
		30	$ 3.20
		60	$ 3.12
		120	$ 2.97
		270	$ 2.62
