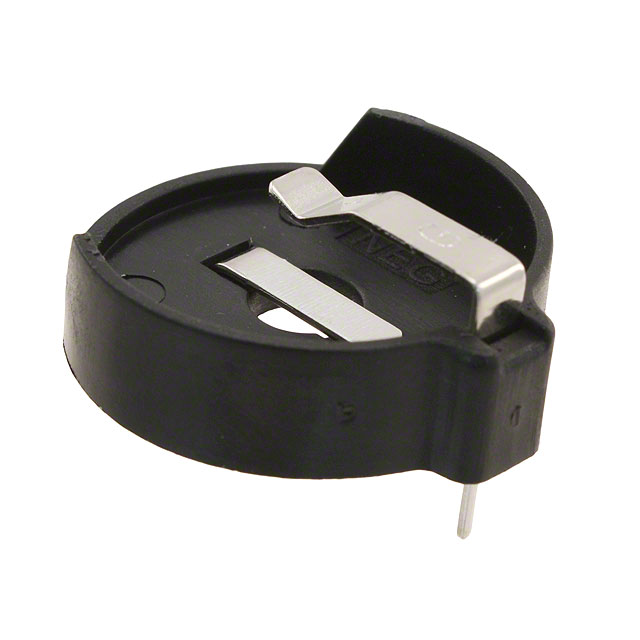

BH1000G
ActiveMPD (Memory Protection Devices)
BATT HOLDER COIN 24.5MM PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BH1000G
ActiveMPD (Memory Protection Devices)
BATT HOLDER COIN 24.5MM PC PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BH1000G |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 24.5 mm |
| Battery Series | 2477 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board [z] | 0.496 " |
| Height Above Board [z] | 12.6 mm |
| Number of Cells | 1 |
| Operating Temperature [Max] | 180 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Holder (Open) |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.79 | |
| 10 | $ 1.51 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.25 | |||
| 300 | $ 1.15 | |||
| 500 | $ 1.08 | |||
| 1000 | $ 1.01 | |||
| 2500 | $ 0.91 | |||
| 5000 | $ 0.84 | |||
Description
General part information
BH1000 Series
Battery Holder (Open) Coin, 24.5mm 1 Cell PC Pin
Documents
Technical documentation and resources
