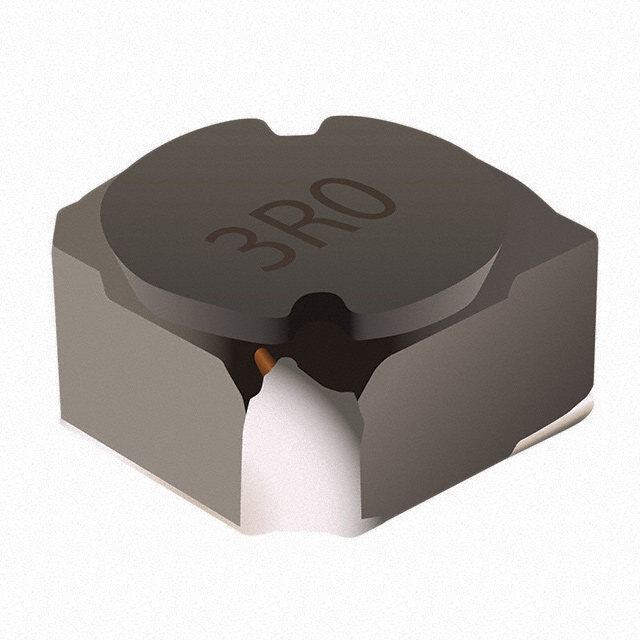

SRR6040A-3R0Y
ActiveBourns Inc.
SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRR6040A SERIES, 3 H, 30%, SHIELDED, 0.021 OHM, 3.5 A
Deep-Dive with AI
Search across all available documentation for this part.
SRR6040A-3R0Y
ActiveBourns Inc.
SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRR6040A SERIES, 3 H, 30%, SHIELDED, 0.021 OHM, 3.5 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRR6040A-3R0Y |
|---|---|
| Current - Saturation (Isat) | 3.33 A |
| Current Rating (Amps) | 3.5 A |
| DC Resistance (DCR) [Max] | 21 mOhm |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Inductance | 3 ÁH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.11 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.58 | |||
| Digi-Reel® | 1 | $ 1.11 | ||
| 10 | $ 0.94 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.58 | |||
| Tape & Reel (TR) | 1000 | $ 0.51 | ||
| 2000 | $ 0.47 | |||
| 3000 | $ 0.45 | |||
| 5000 | $ 0.43 | |||
| 7000 | $ 0.42 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.53 | |
| 4000 | $ 0.47 | |||
| 6000 | $ 0.46 | |||
| 10000 | $ 0.45 | |||
Description
General part information
SRR6040A Series
3 µH Shielded Inductor 3.5 A 21mOhm Max Nonstandard, Corner Terminals
