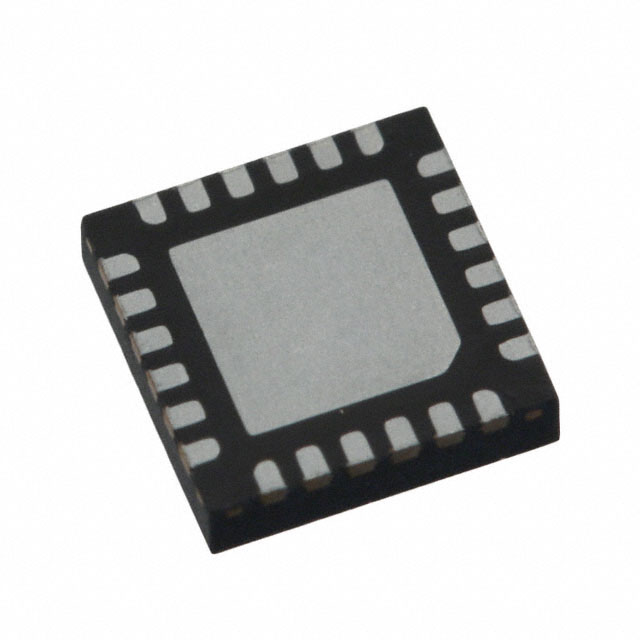

TRC104

Obsolete

Murata Power Solutions Inc.

IC RF TXRX ISM>1GHZ 24QFN

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

IC RF TXRX ISM>1GHZ 24QFN

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Transmitting [Max]	Current - Transmitting [Min]	Data Rate (Max)	Mounting Type	RF Family/Standard	Sensitivity	Type	Supplier Device Package	Current - Receiving [Min]	Current - Receiving [Max]	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case	Package / Case [y]	Power - Output	Modulation	Frequency [Max]	Frequency [Min]	Frequency
Murata Power Solutions Inc. TRC102	3.8 V	2.2 V	23 mA	15 mA	256 kbps	Surface Mount	General ISM < 1GHz	-112 dBm	TxRx Only	16-TSSOP	11 mA	13 mA	SPI	85 °C	-40 °C	0.173 in	16-TSSOP	4.4 mm	7 dBm	FSK	1 GHz	400 MHz
Murata Power Solutions Inc. TRC104	3.6 V	1.9 V	13 mA	9 mA	1 Mbps	Surface Mount	General ISM > 1GHz	-95 dBm	TxRx Only	24-QFN (4x4)	18 mA	19 mA	SPI	85 °C	-40 °C		24-VFQFN Exposed Pad		0 dBm	GFSK			2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC RF TxRx Only General ISM > 1GHz 2.4GHz 24-VFQFN Exposed Pad

Technical documentation and resources

No documents available
