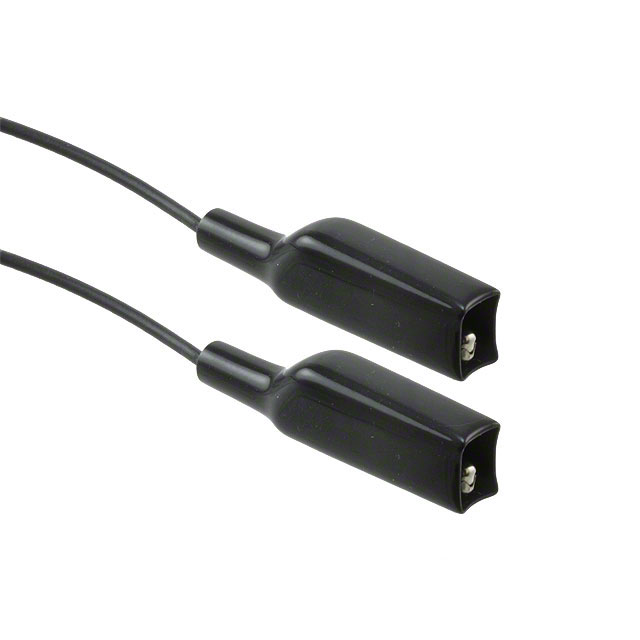

284M-12BLK

Active

E-Z-Hook

TEST LEAD GATOR TO GATOR 12"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD GATOR TO GATOR 12"

Technical Specifications

Parameters and characteristics for this part

Specification	284M-12BLK

1st Connector	Insulated, Miniature, Alligator Clip
2nd Connector	Insulated, Miniature, Alligator Clip
Cable Length	12 in
Cable Length	304.8 mm
Contents	1 Lead, Black
Current Rating (Amps)	2.5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C
Temperature Range	221 °F
Voltage - Rated	1 kV
Voltage - Rated	1000 V
Wire Gauge	22 AWG

Part	Material - Insulation	Voltage - Rated	Voltage - Rated	2nd Connector	Contents	1st Connector	Current Rating (Amps)	Cable Length	Cable Length	Wire Gauge	Temperature Range	Temperature Range	Contents
E-Z-Hook 284M-12 R/B	Poly-Vinyl Chloride (PVC)	1 kV	1000 V	Alligator Clip Insulated Miniature	2 Leads Black and Red	Alligator Clip Insulated Miniature	2.5 A	12 in	304.8 mm	22 AWG	105 °C	221 °F
E-Z-Hook 284M-12BLK	Poly-Vinyl Chloride (PVC)	1 kV	1000 V	Alligator Clip Insulated Miniature	1 Lead Black	Alligator Clip Insulated Miniature	2.5 A	12 in	304.8 mm	22 AWG	105 °C	221 °F
E-Z-Hook 284M-36-S	Poly-Vinyl Chloride (PVC)	1 kV	1000 V	Alligator Clip Insulated Miniature	Multiple Colors	Alligator Clip Insulated Miniature	2.5 A	36 in	914.4 mm	22 AWG	105 °C	221 °F	10 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) Alligator Clip, Miniature, Insulated To Alligator Clip, Miniature, Insulated Test Lead 1000VDC (1kV) 1 Lead, Black
