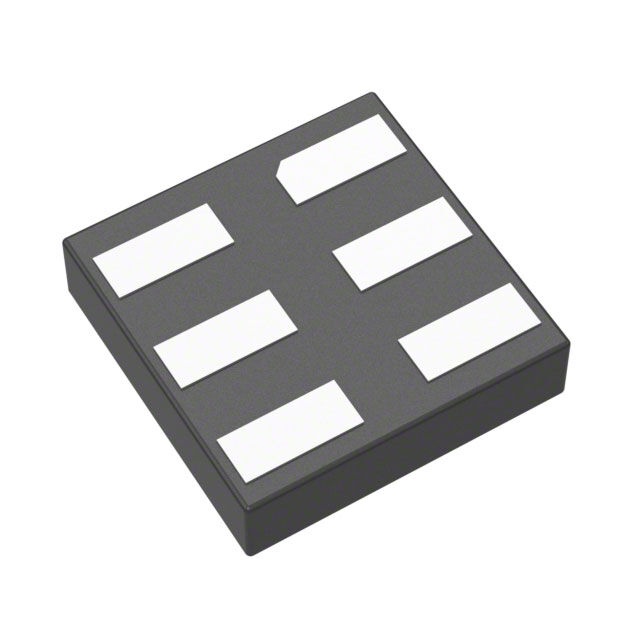

XC9290B17D1R-G
ActiveTorex Semiconductor Ltd
IC REG BUCK 1.7V 600MA 6LGA-B01
Deep-Dive with AI
Search across all available documentation for this part.
XC9290B17D1R-G
ActiveTorex Semiconductor Ltd
IC REG BUCK 1.7V 600MA 6LGA-B01
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XC9290B17D1R-G |
|---|---|
| Current - Output | 600 mA |
| Frequency - Switching | 4 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 6-XFLGA |
| Supplier Device Package | 6-LGA-B01 |
| Supplier Device Package [x] | 1.2 |
| Supplier Device Package [y] | 1.2 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.5 V |
XC9290 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Function | Topology | Voltage - Input (Min) [Min] | Output Configuration | Output Type | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Package / Case | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output (Min/Fixed) | Current - Output | Synchronous Rectifier | Frequency - Switching | Number of Outputs | Voltage - Output (Min/Fixed) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 0.88 | 5-WLP-08 | 0.96 | 5-XFBGA WLBGA | 6 V | Surface Mount | 1.9 V | 600 mA | 6 MHz | 1 | ||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 1.2 | 6-LGA-B01 | 1.2 | 6-XFLGA | 6 V | Surface Mount | 1.2 V | 600 mA | 6 MHz | 1 | ||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 1.2 | 6-LGA-B01 | 1.2 | 6-XFLGA | 6 V | Surface Mount | 600 mA | 4 MHz | 1 | |||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 0.88 | 5-WLP-08 | 0.96 | 5-XFBGA WLBGA | 6 V | Surface Mount | 3.1 V | 600 mA | 6 MHz | 1 | ||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 1.2 | 6-LGA-B01 | 1.2 | 6-XFLGA | 6 V | Surface Mount | 2.9 V | 600 mA | 6 MHz | 1 | ||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 0.88 | 5-WLP-08 | 0.96 | 5-XFBGA WLBGA | 6 V | Surface Mount | 3.6 V | 600 mA | 6 MHz | 1 | ||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 0.88 | 5-WLP-08 | 0.96 | 5-XFBGA WLBGA | 6 V | Surface Mount | 600 mA | 6 MHz | 1 | 2.3 V | ||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 0.88 | 5-WLP-08 | 0.96 | 5-XFBGA WLBGA | 6 V | Surface Mount | 2.7 V | 600 mA | 4 MHz | 1 | ||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 0.88 | 5-WLP-08 | 0.96 | 5-XFBGA WLBGA | 6 V | Surface Mount | 1.8 V | 600 mA | 6 MHz | 1 | ||
Torex Semiconductor Ltd | 105 °C | -40 °C | Step-Down | Buck | 2.5 V | Positive | 1.81 mOhm | 1.2 | 6-LGA-B01 | 1.2 | 6-XFLGA | 6 V | Surface Mount | 2.6 V | 600 mA | 6 MHz | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.34 | |
| 10000 | $ 0.33 | |||
| 15000 | $ 0.33 | |||
| 25000 | $ 0.33 | |||
Description
General part information
XC9290 Series
Buck Switching Regulator IC Positive Fixed 1.7V 1 Output 600mA 6-XFLGA
