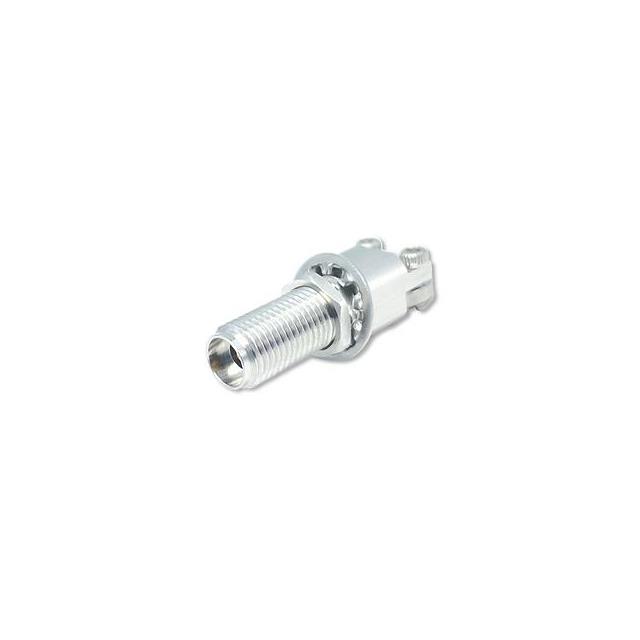

NE03FS002

Active

WITHWAVE CO LTD

END LAUNCH 2.92 MM CONNECTOR (NA

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

END LAUNCH 2.92 MM CONNECTOR (NA

Technical Specifications

Parameters and characteristics for this part

Specification	NE03FS002

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, End Launch, Board Edge
Number of Ports	1
Shield Termination	Screw

Part	Connector Type	Body Finish	Mounting Type	Number of Ports	Contact Termination	Housing Color	Frequency - Max [Max]	Shield Termination	Impedance	Center Contact Plating	Body Material	Center Contact Material	Connector Style	Mounting Feature
WITHWAVE CO LTD NE03FS001	Female Socket Receptacle	Nickel	Board Edge End Launch	1	Compression	Silver	40 GHz	Screw	50 Ohms	Gold	Brass	Beryllium Copper	2.92 mm
WITHWAVE CO LTD NE03FS002	Female Socket Receptacle	Nickel	Board Edge End Launch Panel Mount	1	Compression	Silver	40 GHz	Screw	50 Ohms	Gold	Brass	Beryllium Copper	2.92 mm	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount Compression
