2SA1162YT1

Obsolete

ON Semiconductor

GENERAL PURPOSE AMPLIFIER TRANSISTORS

Search across all available documentation for this part.

Obsolete

ON Semiconductor

GENERAL PURPOSE AMPLIFIER TRANSISTORS

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1162YT1

Current - Collector (Ic) (Max) [Max]	150 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

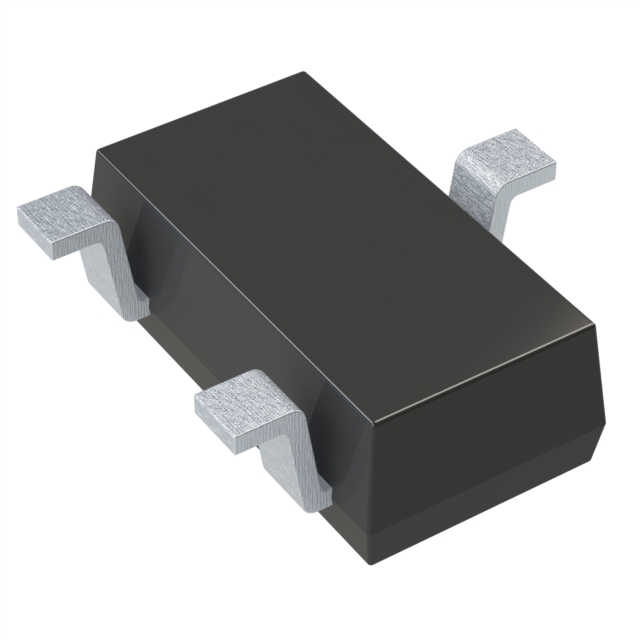

Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	200 mW
Supplier Device Package	SC-59
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

General Purpose Amplifier Transistors

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Power - Max [Max]	Mounting Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Transistor Type	Operating Temperature [Min]	Operating Temperature [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
ON Semiconductor 2SA1162YT1	50 V	SC-59	200 mW	Surface Mount	SC-59 SOT-23-3 TO-236-3	150 mA	100 nA	PNP	-55 °C	150 °C	120

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Amplifier Transistors
