1012-7511-000

Active

Radiall USA, Inc.

SMC M RA BHD SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M RA BHD SP

Technical Specifications

Parameters and characteristics for this part

Specification	1012-7511-000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Insertion Loss	Housing Color	Mounting Feature	Connector Style	Includes	Number of Ports	Connector Type	Center Contact Material	Dielectric Material	Shield Termination	Mounting Type	Contact Termination	Body Finish	Impedance	Center Contact Plating	Frequency - Max [Max]	Mating Cycles
Radiall USA, Inc. 1012-7511-000	-65 ░C	165 °C	Brass	0.5 dB	Silver	Bulkhead - Rear Side Nut	SMC	1 Connector 1 Lockwasher 1 Nut	1	Jack Male Pin	Brass	Polytetrafluoroethylene (PTFE)	Solder	Panel Mount Right Angle	Solder Cup	Nickel	50 Ohms	Gold	10 GHz	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

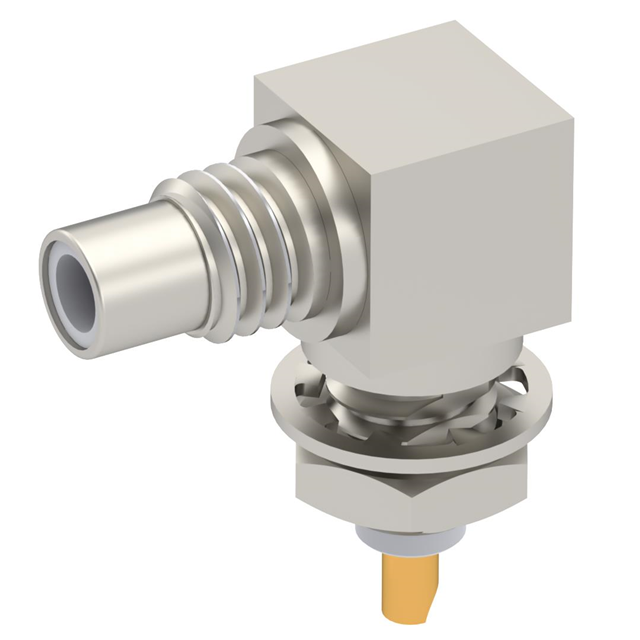

SMC Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Solder Cup
