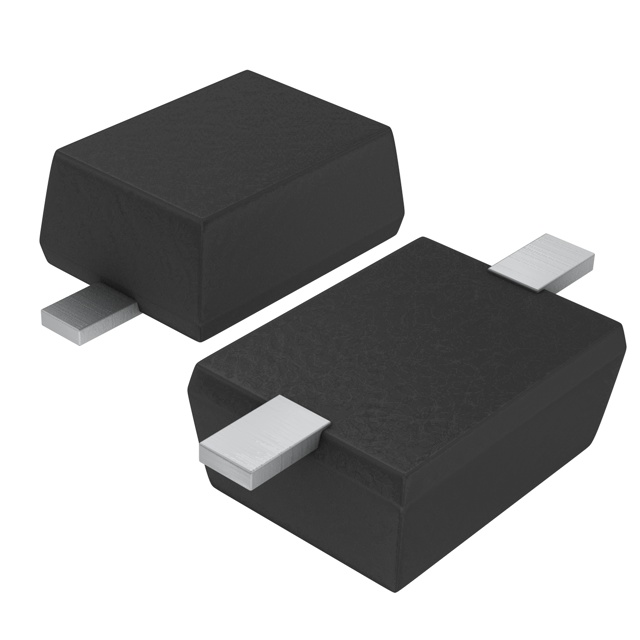

1SS355TE-17
ActiveRohm Semiconductor
RECTIFIER DIODE, 1 ELEMENT, 0.1A, 80V V(RRM), SILICON, UMD2, SC-76, 2 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SS355TE-17
ActiveRohm Semiconductor
RECTIFIER DIODE, 1 ELEMENT, 0.1A, 80V V(RRM), SILICON, UMD2, SC-76, 2 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SS355TE-17 |
|---|---|
| Capacitance @ Vr, F | 3 pF |
| Current - Average Rectified (Io) | 100 mA |
| Current - Reverse Leakage @ Vr | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150 °C |
| Package / Case | SOD-323F, SC-90 |
| Reverse Recovery Time (trr) | 4 ns |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | UMD2 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.14 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.23 | ||
| 10 | $ 0.14 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| Tape & Reel (TR) | 3000 | $ 0.05 | ||
| 6000 | $ 0.04 | |||
| 9000 | $ 0.04 | |||
| 15000 | $ 0.04 | |||
| 21000 | $ 0.04 | |||
| 30000 | $ 0.03 | |||
| 75000 | $ 0.03 | |||
| 150000 | $ 0.03 | |||
| 300000 | $ 0.03 | |||
Description
General part information
1SS355VM Series
The 1SS355VM is a epitaxial planar diode designed for high speed switching applications, in a small molded SOD-323FL surface mount package.
