XCS20XL-5VQ100C

Obsolete

AMD

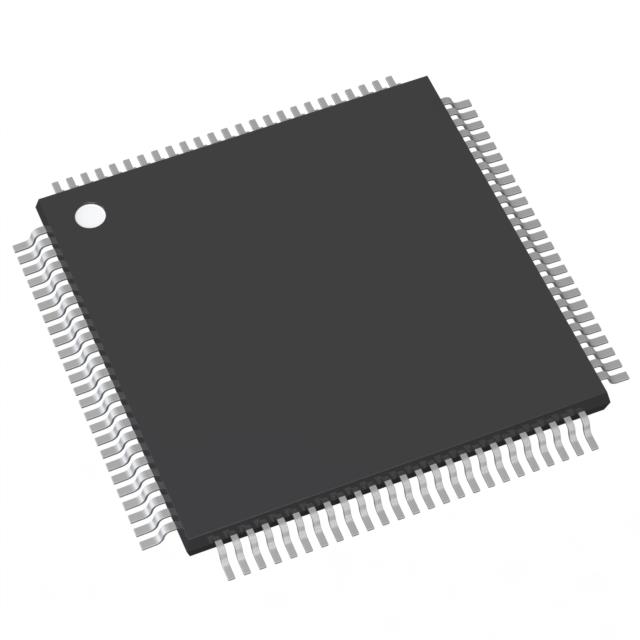

IC FPGA 77 I/O 100VQFP

Search across all available documentation for this part.

Obsolete

AMD

IC FPGA 77 I/O 100VQFP

Technical Specifications

Parameters and characteristics for this part

Specification	XCS20XL-5VQ100C

Mounting Type	Surface Mount
Number of Gates [custom]	20000
Number of I/O	77
Number of LABs/CLBs	400
Number of Logic Elements/Cells	950
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	100-TQFP
Supplier Device Package	100-VQFP (14x14)
Total RAM Bits	12800 Bits
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Total RAM Bits	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Logic Elements/Cells	Number of LABs/CLBs	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Gates [custom]	Supplier Device Package	Package / Case	Number of I/O
AMD XCS20XL-4PQ208C	12800 Bits	3.6 V	3 V	950	400	0 °C	85 °C	Surface Mount	20000	208-PQFP (28x28)	208-BFQFP	160
AMD XCS20XL-4VQ100I	12800 Bits	3.6 V	3 V	950	400	-40 C	100 °C	Surface Mount	20000	100-VQFP (14x14)	100-TQFP	77
AMD XCS20XL-4TQG144C	12800 Bits	3.6 V	3 V	950	400	0 °C	85 °C	Surface Mount	20000	144-TQFP (20x20)	144-LQFP	113 I/O
AMD XCS20XL-4TQ144I	12800 Bits	3.6 V	3 V	950	400	-40 C	100 °C	Surface Mount	20000	144-TQFP (20x20)	144-LQFP	113 I/O
AMD XCS20XL-5VQ100C	12800 Bits	3.6 V	3 V	950	400	0 °C	85 °C	Surface Mount	20000	100-VQFP (14x14)	100-TQFP	77
AMD XCS20XL-4PQ208I	12800 Bits	3.6 V	3 V	950	400	-40 C	100 °C	Surface Mount	20000	208-PQFP (28x28)	208-BFQFP	160
AMD XCS20XL-4PQG208C	12800 Bits	3.6 V	3 V	950	400	0 °C	85 °C	Surface Mount	20000	208-PQFP (28x28)	208-BFQFP	160
AMD XCS20XL-4VQ100C	12800 Bits	3.6 V	3 V	950	400	0 °C	85 °C	Surface Mount	20000	100-VQFP (14x14)	100-TQFP	77
AMD XCS20XL-4TQ144C	12800 Bits	3.6 V	3 V	950	400	0 °C	85 °C	Surface Mount	20000	144-TQFP (20x20)	144-LQFP	113 I/O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Spartan®-XL Field Programmable Gate Array (FPGA) IC 77 12800 950 100-TQFP

Technical documentation and resources

No documents available
