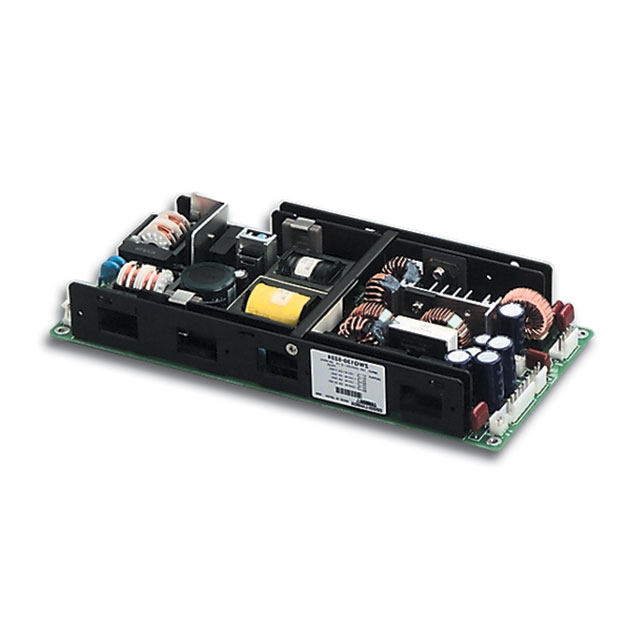

ZWQ130-5225/L
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 4 OUTPUT, 170W @ 30CFM, 130 W, 85V AC TO 265V AC
Deep-Dive with AI
Search across all available documentation for this part.
ZWQ130-5225/L
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 4 OUTPUT, 170W @ 30CFM, 130 W, 85V AC TO 265V AC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZWQ130-5225/L |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 15 A |
| Current - Output 2 | 4 A |
| Current - Output 3 | 4 A |
| Current - Output 4 | 10 A |
| Efficiency | 72 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 130 W |
| Size / Dimension [x] | 8.86 in |
| Size / Dimension [x] | 225 mm |
| Size / Dimension [y] | 106 mm |
| Size / Dimension [y] | 4.17 in |
| Size / Dimension [z] | 35 mm |
| Size / Dimension [z] | 1.38 in |
| Type | Open Frame |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | -12 V |
| Voltage - Output 4 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ZWQ130 Series
ZWQ130-5225/L is a ZWQ series quad output power supply. It includes overpower protection. Application includes factory automation, test and measurement. light industrial equipment. Certified by IEC/UL/CSA/EN62368-1, 60950-1.
