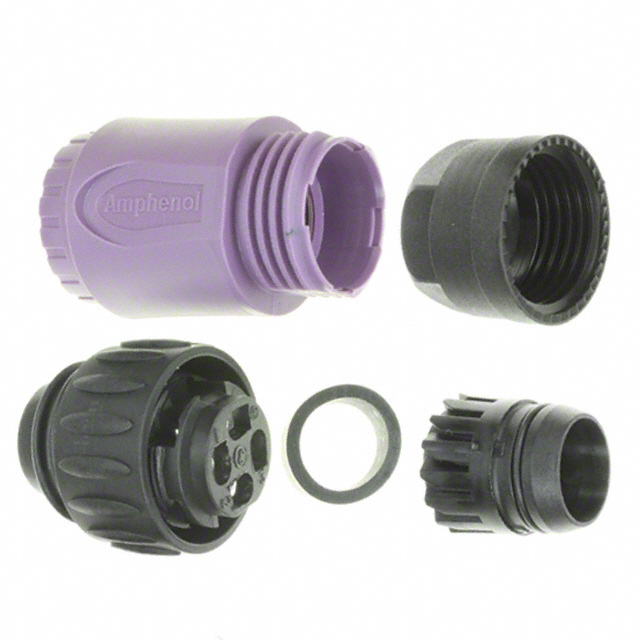

C016 20H003 800 18

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 4POS SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 4POS SCREW

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Features	Orientation	Number of Positions	Connector Type	Primary Material	Ingress Protection	Voltage Rating	Termination	Contact Finish - Mating
Amphenol Tuchel Industrial C016 20H003 800 17	100 °C	-40 °C	Free Hanging (In-Line)	16 A	Cable Clamp	Keyed	4	Male Pins Plug	Plastic	IP65 IP67	400 V	Screw
Amphenol Tuchel Industrial C016 20H003 210 10	100 °C	-40 °C	Free Hanging (In-Line)	16 A	Cable Clamp Strain Relief	Keyed	4	Male Pins Plug	Plastic	IP65 IP67	400 V	Screw	Gold
Amphenol Tuchel Industrial C016 20H003 800 18	100 °C	-40 °C	Free Hanging (In-Line)	16 A	Cable Clamp	Keyed	4	Male Pins Plug	Plastic	IP65 IP67	400 V	Screw
Amphenol Tuchel Industrial C016 20H003 804 12	100 °C	-40 °C	Free Hanging (In-Line)	16 A		Keyed	4	Male Pins Plug	Plastic	IP65 IP67	400 V	Screw	Gold
Amphenol Tuchel Industrial C016 20H003 800 11	100 °C	-40 °C	Free Hanging (In-Line)	16 A	Cable Clamp	Keyed	4	Male Pins Plug	Plastic	IP65 IP67	400 V	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Plug, Male Pins Screw

Technical documentation and resources
