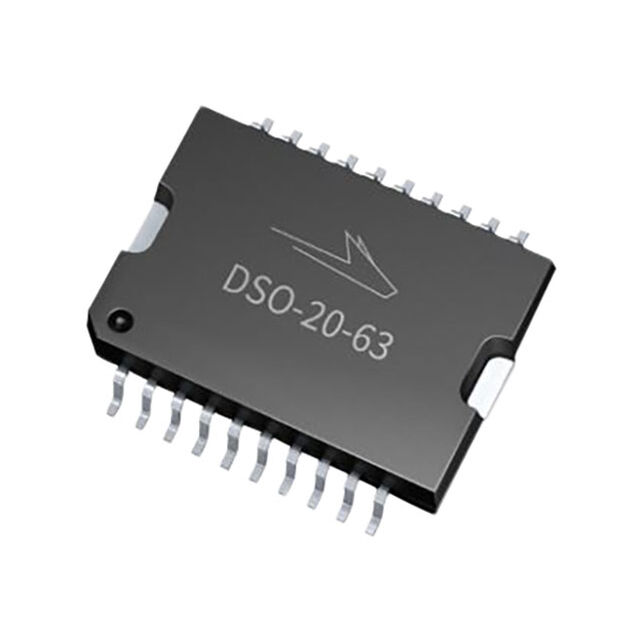

PTMA180402M-V1-R500
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 28V DSO20
Deep-Dive with AI
Search across all available documentation for this part.
PTMA180402M-V1-R500
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 28V DSO20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTMA180402M-V1-R500 |
|---|---|
| Current - Test | 360 mA |
| Current Rating (Amps) | 10 µA |
| Frequency [Max] | 2.1 GHz |
| Frequency [Min] | 1.8 GHz |
| Gain | 30 dBi |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Package / Case [x] | 11 mm |
| Power - Output | 40 W |
| Supplier Device Package | PG-DSO-20-63 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 51.33 | |
| 10 | $ 48.22 | |||
| 25 | $ 46.66 | |||
| 100 | $ 43.24 | |||
| Digi-Reel® | 1 | $ 51.33 | ||
| 10 | $ 48.22 | |||
| 25 | $ 46.66 | |||
| 100 | $ 43.24 | |||
| Tape & Reel (TR) | 500 | $ 38.50 | ||
Description
General part information
PTMA180402 Series
RF Mosfet 28 V 360 mA 1.8GHz ~ 2.1GHz 30dB 40W PG-DSO-20-63
Documents
Technical documentation and resources
No documents available
