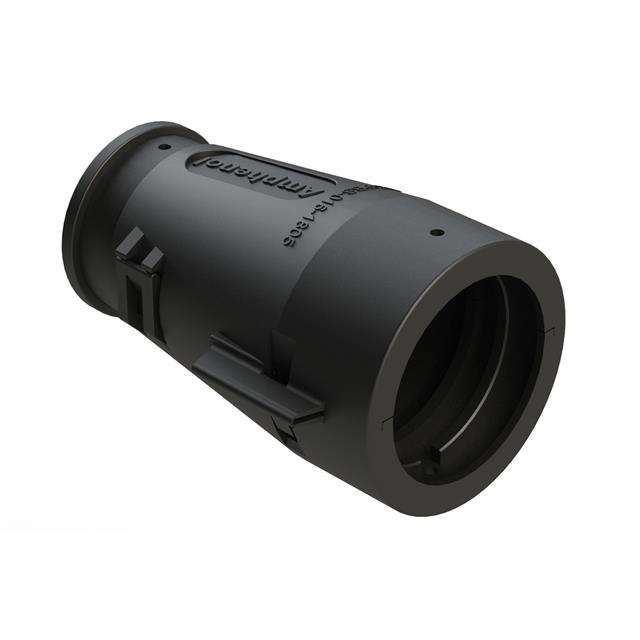

AHDPBS-16L017-1805

Active

Amphenol Sine Systems Corp

CONN BACKSHELL SZ18 BLACK

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN BACKSHELL SZ18 BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	AHDPBS-16L017-1805

Cable Exit	180 °
Cable Opening [custom]	28.9 mm
Cable Opening [custom]	1.138 in
Color	Black
Diameter - Outside [diameter]	1.614 "
Diameter - Outside [diameter]	41 mm
Features	Snap-On
For Use With/Related Products	AHDP Series Connector with WTA Modification
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Thermoplastic
Primary Material	Plastic
Shell Size - Insert	18
Shielding	Unshielded
Type	Backshell

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Shielding	Features	Type	For Use With/Related Products	Ingress Protection	Cable Exit	Includes	Thread Size	Shell Size - Insert	Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Primary Material	Cable Opening [custom]	Cable Opening [custom]
Amphenol Sine Systems Corp AHDPBS-18-002	1.551 in	39.4 mm	Black	Unshielded	Strain Relief	Backshell	AHDP Series Connector with WTA Modification	IP67 - Dust Tight Waterproof	180 °	1 Backshell 1 Compression Nut	1 7/16-12 UN	18	Thermoplastic
Amphenol Sine Systems Corp AHDPBS-18-SM01	1.535 in	39 mm	Black	Unshielded		Backshell	AHDP Series		180 °	1 Backshell 1 Cage Clamp 1 Compression Nut 1 Rubber Ring	1 7/16-12 UN-2B	18	Thermoplastic	16 mm	12 mm	0.472 in	0.63 in
Amphenol Sine Systems Corp AHDPBS-16L017-1805	1.614 "	41 mm	Black	Unshielded	Snap-On	Backshell	AHDP Series Connector with WTA Modification	IP68 - Dust Tight Waterproof	180 °			18	Thermoplastic					Plastic	28.9 mm	1.138 in
Amphenol Sine Systems Corp AHDPBS-24L015-005	1.512 in	38.4 mm	Black	Unshielded	Strain Relief	Backshell	AHDP Series Connector with WTA Modification		180 °		M35x1.75	24	Thermoplastic					Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell 18
