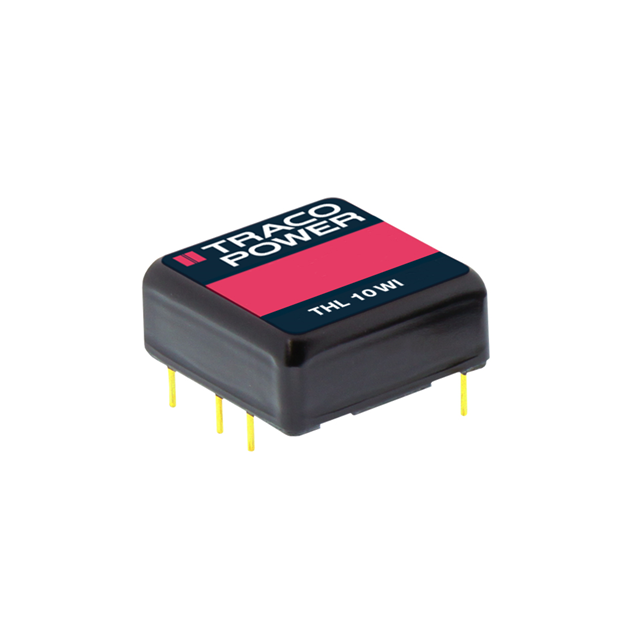

THL 10-4823WI

Traco Power

DC DC CONVERTER +/-15V 9.9W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet THL 10WI Certs

THL 10-4823WI

Traco Power

DC DC CONVERTER +/-15V 9.9W

Deep-Dive with AI

DocumentsDatasheet THL 10WI Certs

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THL 10-4823WI

Applications	ITE (Commercial)
Current - Output (Max)	330 mA
Current - Output (Max)	330 mA
Efficiency	87 %
Features	Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	9.9 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

THL 10 Series

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Power (Watts)	Voltage - Isolation	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Efficiency	Voltage - Output 1	Applications	Package / Case	Package / Case	Mounting Type	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Traco Power THL 10-4815WI	410 mA	75 V	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	9.8 W	1.5 kV	18 V	-40 °C	75 ¯C	Remote On/Off SCP	86 %	24 V	ITE (Commercial)	5 Leads	6-DIP Module	Through Hole	1
Traco Power THL 10-4810	2.5 A	75 V	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	8.3 W	1.5 kV	36 V	-40 °C	80 ¯C	SCP	83 %	3.3 V	ITE (Commercial)	4 Lead	5-DIP Module	Through Hole	1
Traco Power THL 10-2410	2.5 A	36 V	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	8.3 W	1.5 kV	18 V	-40 °C	80 ¯C	SCP	83 %	3.3 V	ITE (Commercial)	4 Lead	5-DIP Module	Through Hole	1
Traco Power THL 10-1213	670 mA	18 V	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	10 W	1.5 kV	9 V	-40 °C	80 ¯C	SCP	88 %	15 V	ITE (Commercial)	4 Lead	5-DIP Module	Through Hole	1
Traco Power THL 10-4812WI	830 mA	75 V	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	10 W	1.5 kV	18 V	-40 °C	75 ¯C	Remote On/Off SCP	86 %	12 V	ITE (Commercial)	5 Leads	6-DIP Module	Through Hole	1
Traco Power THL 10-4823WI		75 V	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	9.9 W	1.5 kV	18 V	-40 °C	75 ¯C	Remote On/Off SCP	87 %	15 V	ITE (Commercial)		6-DIP Module	Through Hole	2	330 mA	330 mA	-15 V
Traco Power THL 10-2422	416 mA	36 V	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	10 W	1.5 kV	18 V	-40 °C	80 ¯C	SCP	88 %	12 V	ITE (Commercial)		5-DIP Module	Through Hole	2			-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 35.07
