45-1828.1C90.001.105

Active

EAO

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 10 A, 500 V, 45 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

45-1828.1C90.001.105

Active

EAO

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 10 A, 500 V, 45 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45-1828.1C90.001.105

Approval Agency	UL, CSA, VDE, CCC, CE
Circuit	DPST-NO/NC
Current Rating (Amps)	10 A
Illumination	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles
Number of Positions	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

45-1828 Series

Part	Type	Illumination	Approval Agency	Number of Positions	Circuit	Ingress Protection	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Switch Function	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
EAO 45-1828.1C90.001.401	Standard	Non-Illuminated	CCC CE CSA UL VDE	2	SPST-NO	IP66 IP67 IP69K	Spring Terminal	10 A	500 V	22.3 mm	Off-On	1000000 Cycles	70 °C	-25 °C	500 V
EAO 45-1828.2C90.001.401	Standard	Non-Illuminated	CCC CE CSA UL VDE	2	SPST-NO	IP66 IP67 IP69K	Spring Terminal	10 A	500 V	22.3 mm	Off-On	1000000 Cycles	70 °C	-25 °C	500 V
EAO 45-1828.2C90.001.105	Standard	Non-Illuminated	CCC CE CSA UL VDE	2	DPST-NO/NC	IP66 IP67 IP69K	Screw Terminal	10 A	500 V	22.3 mm	Off-On On-Off	1000000 Cycles	70 °C	-25 °C	500 V
EAO 45-1828.1C90.001.105	Standard	Non-Illuminated	CCC CE CSA UL VDE	2	DPST-NO/NC	IP66 IP67 IP69K	Screw Terminal	10 A	500 V	22.3 mm	Off-On On-Off	1000000 Cycles	70 °C	-25 °C	500 V
EAO 45-1828.3C90.001.105	Standard	Non-Illuminated	CCC CE CSA UL VDE	2	DPST-NO/NC	IP66 IP67 IP69K	Screw Terminal	10 A	500 V	22.3 mm	Off-On On-Off	1000000 Cycles	70 °C	-25 °C	500 V
EAO 45-1828.3C90.001.408	Standard	Non-Illuminated	CCC CE CSA UL VDE	2	DPST-NO/NC	IP66 IP67 IP69K	Spring Terminal	10 A	500 V	22.3 mm	Off-On On-Off	1000000 Cycles	70 °C	-25 °C	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.24
		10	$ 53.97
		25	$ 50.35
		50	$ 48.38
		100	$ 45.09
Newark	Each	10	$ 55.24
		25	$ 52.64
		50	$ 50.04

Description

General part information

45-1828 Series

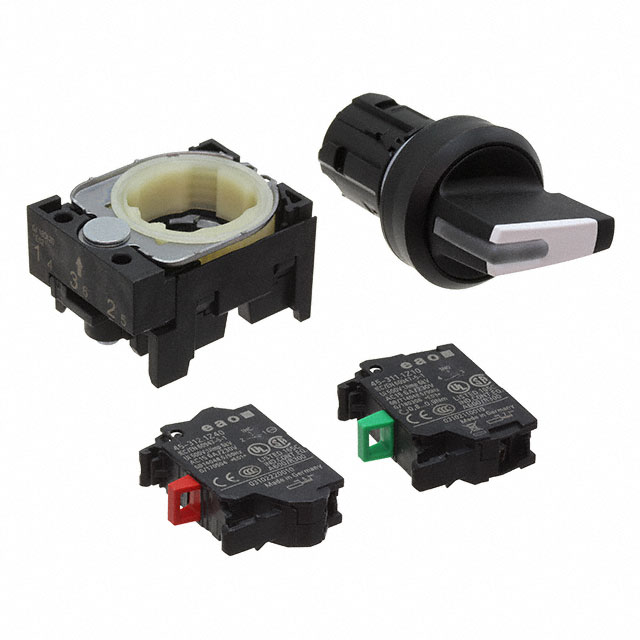

The 45-1828.1C90.001.105 from EAO is a selector switch. This actuator is intuitive to operate, provide distinctive tactile feedback, has a long service life of up to 1 million switching cycles and high front protection (up to IP69K).
