100R18-254B

Active

Parlex USA LLC

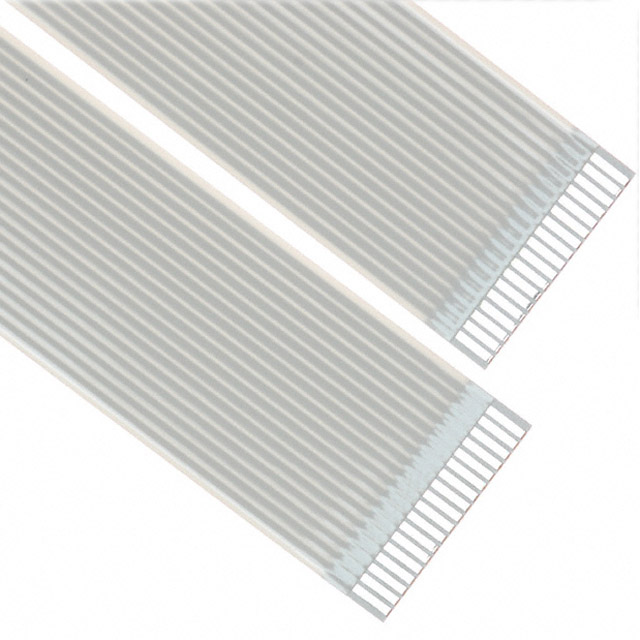

CABLE FFC/FPC 18POS 1MM 10"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 18POS 1MM 10"

Technical Specifications

Parameters and characteristics for this part

Specification	100R18-254B

Cable Type	FPC, FFC
Length	254 mm
Length - Exposed Ends [x]	0.14 in
Length - Exposed Ends [x]	3.56 mm
Length [x]	10 in
Number of Conductors	18
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Cable Type	Number of Conductors	Length	Length	Termination Style	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length [x]
Parlex USA LLC 100R18-76B	FFC FPC	18	3 in	76.2 mm	Backers on Both Sides Top on Both Sides	0.14 in	3.56 mm	0.039 in	1 mm
Parlex USA LLC 100R18-127B	FFC FPC	18	5 in	127 mm	Backers on Both Sides Top on Both Sides	0.14 in	3.56 mm	0.039 in	1 mm
Parlex USA LLC 100R18-254B	FFC FPC	18		254 mm	Backers on Both Sides Top on Both Sides	0.14 in	3.56 mm	0.039 in	1 mm	10 in
Parlex USA LLC 100R18-457B	FFC FPC	18	18 "	457.2 mm	Backers on Both Sides Top on Both Sides	0.14 in	3.56 mm	0.039 in	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position FFC, FPC Cable 0.039" (1.00mm) 10.0" (254.0mm)
