TMA-4FS-4FS-00

Active

CarlisleIT

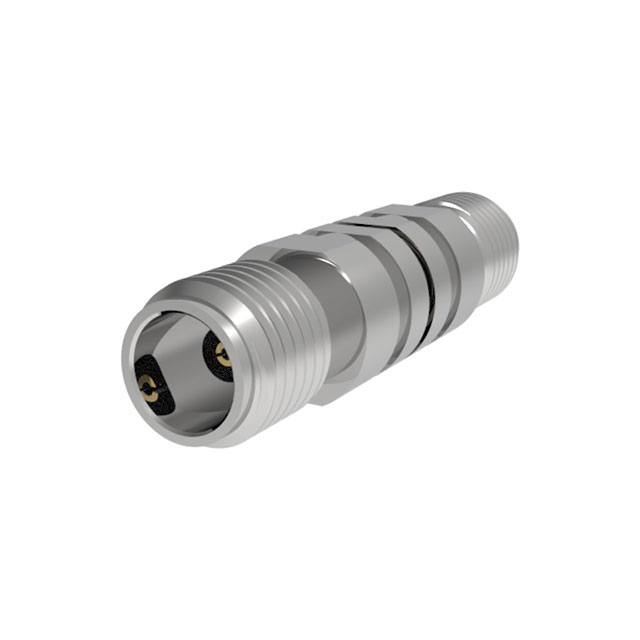

MW ADAPTER 2.4(F) TO 2.4(F)

Search across all available documentation for this part.

Active

CarlisleIT

MW ADAPTER 2.4(F) TO 2.4(F)

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Max [Max]	Mounting Type	Style	Center Gender	Adapter Type	Center Contact Material	Adapter Series [Max]	Adapter Series [Min]	Body Material	Convert To (Adapter End)	Convert To (Adapter End)	Impedance	Conversion Type	Convert From (Adapter End)
CarlisleIT TMA-4FS-9FS-00	40 GHz	Free Hanging (In-Line)	Straight	Female to Female	Jack to Jack	Beryllium Copper	2.92 mm	2.4 mm	Stainless Steel	2.92 mm	OS-2.9 Jack Female Socket	50 Ohms	Between Series	2.4 mm
CarlisleIT TMA-4FS-4FS-00	50 GHz	Free Hanging (In-Line)	Straight	Female to Female	Jack to Jack	Beryllium Copper	2.4 mm	2.4 mm	Stainless Steel	2.4 mm		50 Ohms	Same Series	2.4 mm
CarlisleIT TMA-4FS-5FS-00	26.5 GHz	Free Hanging (In-Line)	Straight	Female to Female	Jack to Jack	Beryllium Copper	3.5 mm	2.4 mm	Stainless Steel		3.5mm Jack Female Socket	50 Ohms	Between Series	2.4 mm
CarlisleIT TMA-4FS-9MS-00	40 GHz	Free Hanging (In-Line)	Straight		Plug to Jack	Beryllium Copper	2.92 mm	2.4 mm	Stainless Steel		2.92mm (OS-2.9) Plug Male Pin	50 Ohms	Between Series	2.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
