EKZE101ELL681MMP1S

Active

Chemi-Con

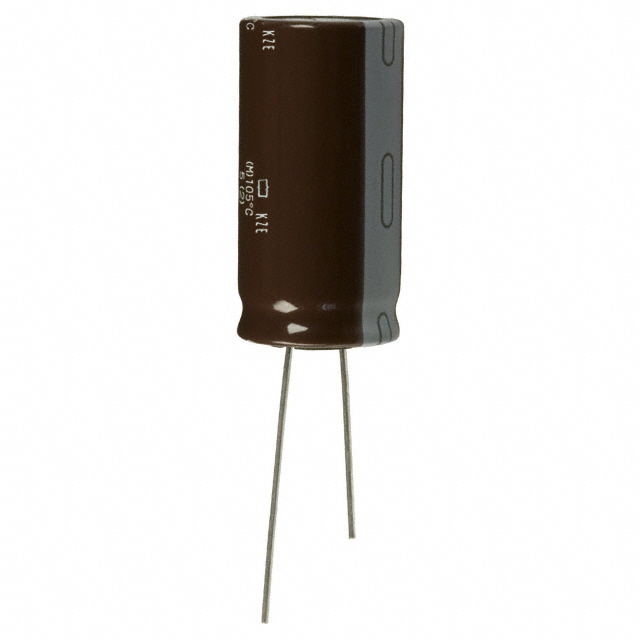

CAP ALUM 680UF 20% 100V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE101ELL681MMP1S

Active

Chemi-Con

CAP ALUM 680UF 20% 100V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKZE101ELL681MMP1S

Applications	General Purpose
Capacitance	680 µF
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Impedance	27 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.2 A
Ripple Current @ Low Frequency	1.32 A
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	100 V

EKZE101E Series

Part	Lead Spacing	Lead Spacing	Polarization	Ripple Current @ Low Frequency	Package / Case	Mounting Type	Ripple Current @ High Frequency	Applications	Tolerance	Voltage - Rated	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE101ELL221ML20S	7.5 mm	0.295 in	Polar	675 mA	Radial Can	Through Hole	1.35 A	General Purpose	20 %	100 V	220 µF	21.5 mm	0.846 in	5000 Hrs	-40 °C	105 ░C	0.63 in	16 mm	48 mOhms
Chemi-Con EKZE101ELL821MM40S	7.5 mm	0.295 in	Polar	1.62 A	Radial Can	Through Hole	2.7 A	General Purpose	20 %	100 V	820 µF	1.634 "		5000 Hrs	-40 °C	105 ░C	0.709 "	18 mm	26 mOhms	41.5 mm
Chemi-Con EKZE101EC5561MLP1S	7.5 mm	0.295 in	Polar	1 A	Radial Can	Through Hole	2 A	General Purpose	20 %	100 V	560 µF			5000 Hrs	-40 °C	105 ░C	0.63 in	16 mm	29 mOhms		37 mm	1.457 in
Chemi-Con EKZE101ELL221MK25S	5 mm	0.197 in	Polar	625 mA	Radial Can	Through Hole	1.25 A	General Purpose	20 %	100 V	220 µF			5000 Hrs	-40 °C	105 ░C	0.492 in	12.5 mm	47 mOhms		26.5 mm	1.043 in
Chemi-Con EKZE101ELL681ML40S	7.5 mm	0.295 in	Polar	1.32 A	Radial Can	Through Hole	2.2 A	General Purpose	20 %	100 V	680 µF	1.634 "		5000 Hrs	-40 °C	105 ░C	0.63 in	16 mm	27 mOhms	41.5 mm
Chemi-Con EKZE101ELL681MMP1S	7.5 mm	0.295 in	Polar	1.32 A	Radial Can	Through Hole	2.2 A	General Purpose	20 %	100 V	680 µF			5000 Hrs	-40 °C	105 ░C	0.709 "	18 mm	27 mOhms		37 mm	1.457 in
Chemi-Con EKZE101ELL121MJ25S	5 mm	0.197 in	Polar	360 mA	Radial Can	Through Hole	900 mA	General Purpose	20 %	100 V	120 µF			4000 Hrs	-40 °C	105 ░C	0.394 in	10 mm	69 mOhms		26.5 mm	1.043 in
Chemi-Con EKZE101EC5151MK20S	5 mm	0.197 in	Polar	440 mA	Radial Can	Through Hole	1.1 A	General Purpose	20 %	100 V	150 µF	21.5 mm	0.846 in	5000 Hrs	-40 °C	105 ░C	0.492 in	12.5 mm	62 mOhms
Chemi-Con EKZE101ELL101MK16S	5 mm	0.197 in	Polar	300 mA	Radial Can	Through Hole	750 mA	General Purpose	20 %	100 V	100 µF	17.5 mm	0.689 in	5000 Hrs	-40 °C	105 ░C	0.492 in	12.5 mm	110 mOhms
Chemi-Con EKZE101EC3471MLN3S	7.5 mm	0.295 in	Polar	925 mA	Radial Can	Through Hole	1.85 A	General Purpose	20 %	100 V	470 µF			5000 Hrs	-40 °C	105 ░C	0.63 in	16 mm	32 mOhms		33 mm	1.299 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.81
		10	$ 2.16
		50	$ 1.98
		250	$ 1.49
		500	$ 1.32
		1000	$ 1.16
		2500	$ 1.12
		5000	$ 1.07

Description

General part information

EKZE101E Series

680 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
