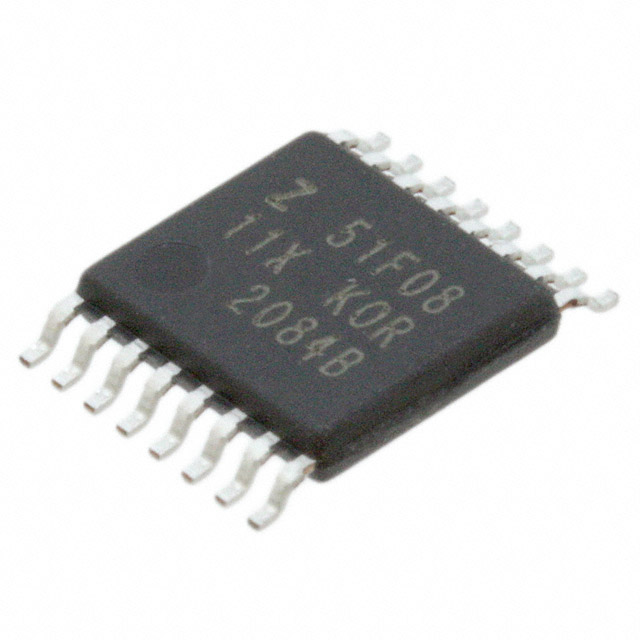

Z51F0811RFX

Obsolete

Zilog

IC MCU 8BIT 8KB FLASH 16TSSOP

Search across all available documentation for this part.

Obsolete

Zilog

IC MCU 8BIT 8KB FLASH 16TSSOP

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Speed	Core Size	Package / Case [x]	Package / Case	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	Data Converters [custom]	Data Converters [custom]	Core Processor	Connectivity	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	RAM Size	Number of I/O	EEPROM Size	Data Converters	Data Converters	Supplier Device Package
Zilog Z51F0811RFX	Surface Mount	12 MHz	8-Bit	0.173 in	16-TSSOP	4.4 mm	85 °C	-40 °C	Internal	12 b	8	8051	I2C SPI UART/USART	FLASH	1.8 V	5.5 V	256 x 8	14	512 x 8
Zilog Z51F0811QUX	Surface Mount	12 MHz	8-Bit		32-VFQFN Exposed Pad		85 °C	-40 °C	Internal			8051	I2C SPI UART/USART	FLASH	1.8 V	5.5 V	256 x 8	30 I/O	512 x 8	12 b 15	A/D
Zilog Z51F0811RHX	Surface Mount	12 MHz	8-Bit	0.173 in	20-TSSOP	4.4 mm	85 °C	-40 °C	Internal			8051	I2C SPI UART/USART	FLASH	1.8 V	5.5 V	256 x 8	18	512 x 8	9 12 b		20-TSSOP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8051 Z8051 Microcontroller IC 8-Bit 12MHz 8KB (8K x 8) FLASH
