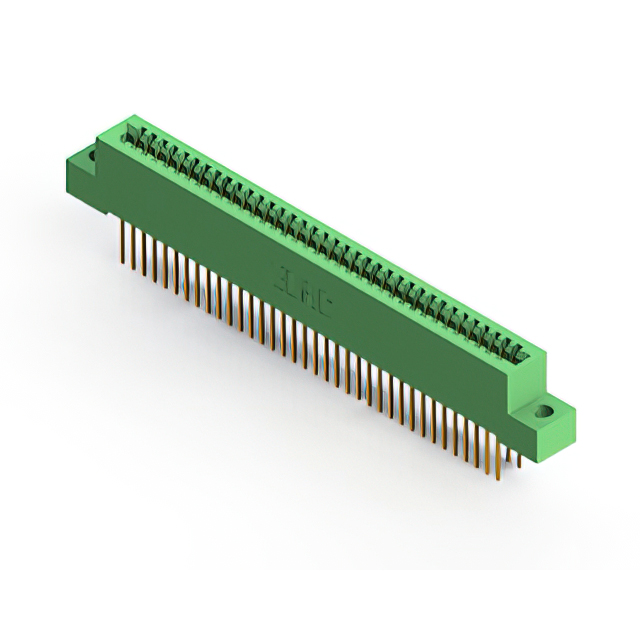

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-072-542-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-072-542-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
342-072 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Rows | Termination | Number of Positions/Bay/Row [custom] | Material - Insulation | Card Type | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Gender | Contact Material | Termination Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Positions | Pitch [x] | Pitch [x] | Features | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Wire Wrap | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Solder | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | Card Extender | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Wire Wrap | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Solder | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Wire Wrap | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Wire Wrap | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Solder Wire Wrap | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Wire Wrap | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Solder | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Green | 2 | Solder Eyelet(s) | 36 | Polyester Thermoplastic | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Copper Alloy | 2 | Gold | -40 °C | 105 ░C | Dual | 72 | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
