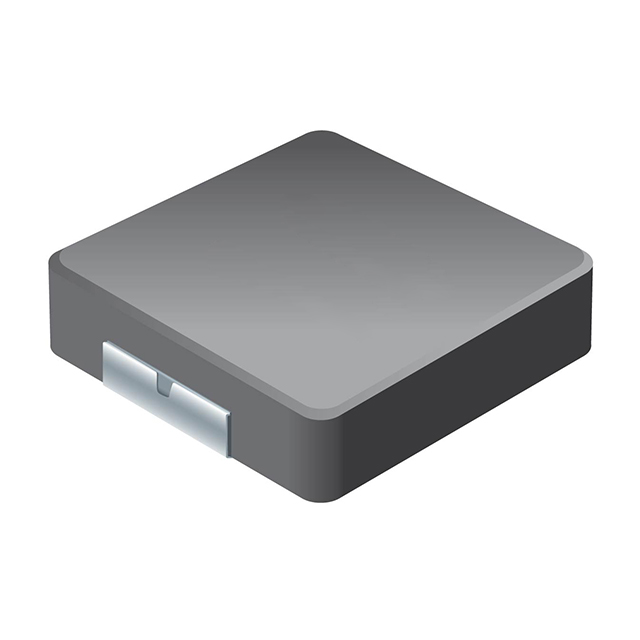

SRP3020TA-R33M

Active

Bourns Inc.

IND,3.5X3.2X1.8MM,0.33UH,20%,8A,SHD,SMD /TAPE & REEL - 13" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

IND,3.5X3.2X1.8MM,0.33UH,20%,8A,SHD,SMD /TAPE & REEL - 13" REEL

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Current Rating (Amps)	Package / Case	Frequency - Self Resonant	DC Resistance (DCR)	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Tolerance	Q @ Freq	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Mounting Type	Ratings	Inductance Frequency - Test	Supplier Device Package	DC Resistance (DCR) [Max]
Bourns Inc. SRP3020TA-4R7M	Shielded	2.6 A	2-SMD	34 MHz	200 mOhm	4.7 ÁH	0.138 "	0.126 "	3.2 mm	3.5 mm	Drum Core Wirewound	20 %	10 100 kHz	Carbonyl Powder	2 mm	0.079 in	3 A	Surface Mount	AEC-Q200	100 kHz	2-SMD
Bourns Inc. SRP3020TA-R22Y	Shielded		2-SMD	185 MHz		220 nH	0.138 "	0.126 "	3.2 mm	3.5 mm	Drum Core Wirewound	30 %	5 100 kHz	Carbonyl Powder	2 mm	0.079 in	11.2 A	Surface Mount	AEC-Q200	100 kHz	2-SMD	14 mOhm
Bourns Inc. SRP3020TA-R68M	Shielded	5.5 Amps	2-SMD	94 MHz		0.68 µH	0.138 "	0.126 "	3.2 mm	3.5 mm	Drum Core Wirewound	20 %	5 100 kHz	Carbonyl Powder	2 mm	0.079 in	7 A	Surface Mount	AEC-Q200	100 kHz	2-SMD	29 mOhm
Bourns Inc. SRP3020TA-R33M	Shielded	8 A	2-SMD	160 MHz		330 nH	0.138 "	0.126 "	3.2 mm	3.5 mm	Drum Core Wirewound	20 %	5 100 kHz	Carbonyl Powder	2 mm	0.079 in	10 A	Surface Mount	AEC-Q200	100 kHz	2-SMD	21 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

330 nH Shielded Drum Core, Wirewound Inductor 8 A 21mOhm Max 2-SMD
