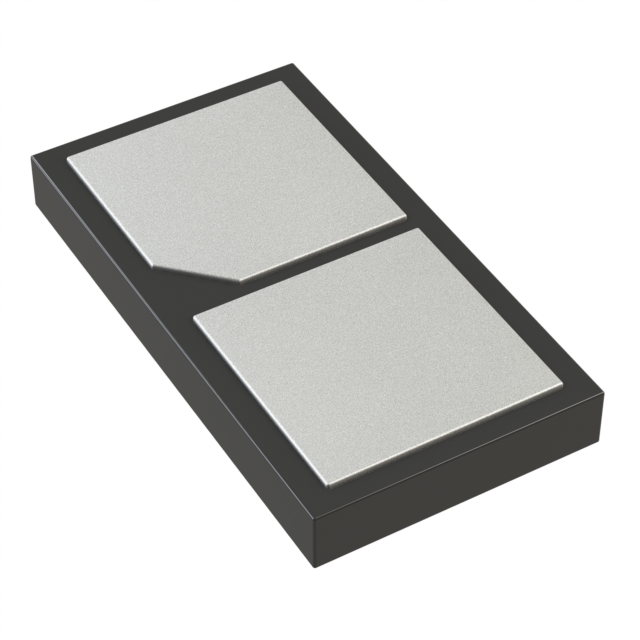

DS2431GA+T&R

Active

Analog Devices Inc./Maxim Integrated

IC EEPROM 1KBIT 1-WIRE 2SFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS2431GA+T&R

Active

Analog Devices Inc./Maxim Integrated

IC EEPROM 1KBIT 1-WIRE 2SFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS2431GA+T&R

Access Time	2 µs
Memory Format	EEPROM
Memory Interface	1-Wire®
Memory Organization	256 x 4
Memory Size	128 B
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-WDFN
Supplier Device Package	2-SFN
Supplier Device Package [x]	3.5
Supplier Device Package [y]	6.5
Technology	EEPROM

DS2431 Series

Part	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Access Time	Memory Interface	Memory Type	Memory Organization	Memory Size	Memory Format	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case
Analog Devices Inc./Maxim Integrated DS2431Q+T&R	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	6-TDFN (3x3)
Analog Devices Inc./Maxim Integrated DS2431X+U	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	6-UCSPR	1.68	1.68	6-WFBGA CSPBGA
Analog Devices Inc./Maxim Integrated DS2431P-045-A02+T	EEPROM	85 °C	-40 °C		2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM
Analog Devices Inc./Maxim Integrated DS2431X+	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	6-UCSPR	1.68	1.68	6-WFBGA CSPBGA
Analog Devices Inc./Maxim Integrated DS2431P+	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	6-TSOC			6-SMD J-Lead
Analog Devices Inc./Maxim Integrated DS2431Q+U	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	6-TDFN (3x3)
Analog Devices Inc./Maxim Integrated DS2431X-S+	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	6-UCSPR	1.68	1.68	6-WFBGA CSPBGA
Analog Devices Inc./Maxim Integrated DS2431GA+T&R	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	2-SFN	3.5	6.5	2-WDFN
Analog Devices Inc./Maxim Integrated DS2431G+U	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	2-SFN (6x6)			2-SFN
Analog Devices Inc./Maxim Integrated DS2431X-S+TW	EEPROM	85 °C	-40 °C	Surface Mount	2 µs	1-Wire®	Non-Volatile	256 x 4	128 B	EEPROM	6-UCSPR	1.68	1.68	6-WFBGA CSPBGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.58
		10	$ 2.29
		25	$ 2.18
		50	$ 2.11
		100	$ 2.03
		250	$ 1.94
		500	$ 1.87
		1000	$ 1.80
	Digi-Reel®	1	$ 2.58
		10	$ 2.29
		25	$ 2.18
		50	$ 2.11
		100	$ 2.03
		250	$ 1.94
		500	$ 1.87
		1000	$ 1.80
	Tape & Reel (TR)	2500	$ 1.72
		5000	$ 1.66

Description

General part information

DS2431 Series

EEPROM Memory IC 1Kbit 1-Wire® 2 µs 2-SFN (3.5x6.5)

Documents

Technical documentation and resources
