WR-30PB-VF50-N1-R1300
ActiveJAE Electronics

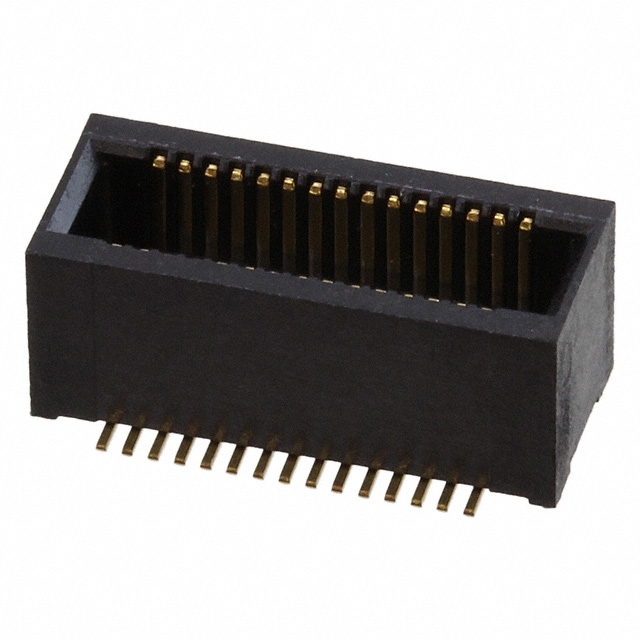

BOARD CONNECTOR, 30 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SURFACE MOUNT TERMINAL, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR-30PB-VF50-N1-R1300
ActiveJAE Electronics
BOARD CONNECTOR, 30 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SURFACE MOUNT TERMINAL, LEAD FREE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR-30PB-VF50-N1-R1300 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Board Guide |
| Height Above Board | 0.118 in |
| Height Above Board | 3 mm |
| Mated Stacking Heights | 5.5 mm, 8 mm, 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.10 | |
| Digi-Reel® | 1 | $ 2.97 | ||
| Tape & Reel (TR) | 1300 | $ 1.39 | ||
Description
General part information
WR-30PB Series
30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
