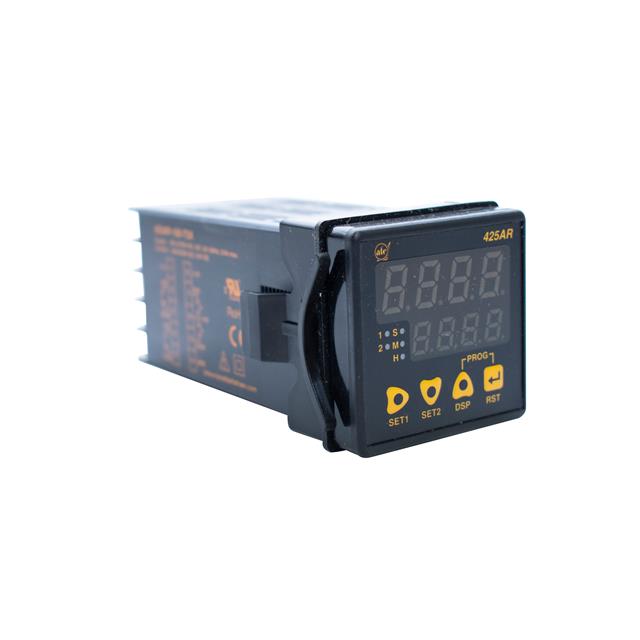

425AR-100-T5X

Active

ATC-Diversified Electronics

RELAY TIME DELAY 9999HR 5A 230V

Search across all available documentation for this part.

Active

ATC-Diversified Electronics

RELAY TIME DELAY 9999HR 5A 230V

Technical Specifications

Parameters and characteristics for this part

Specification	425AR-100-T5X

Circuit	DPST-NO (2 Form A)
Contact Rating @ Voltage	230 VAC, 5 A
Delay Time [Max]	9999 Hrs
Delay Time [Min]	0 s
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Up/Down Digit Keys
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	270 VAC/DC
Voltage - Supply [Min]	90 VAC

Part	Contact Rating @ Voltage	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Timing Adjustment Method	Circuit	Relay Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Function	Termination Style
ATC-Diversified Electronics 425AR-100-T5X	5 A 230 VAC	Input Voltage	0 s	9999 Hrs	Up/Down Digit Keys	DPST-NO (2 Form A)	Mechanical Relay	270 VAC/DC	90 VAC	DIN Rail	Programmable (Multi-Function)	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 189.59

General part information

Programmable (Multi-Function) Time Delay Relay DPST-NO (2 Form A) 0 Sec ~ 9999 Hrs Delay 5A @ 230VAC DIN Rail
