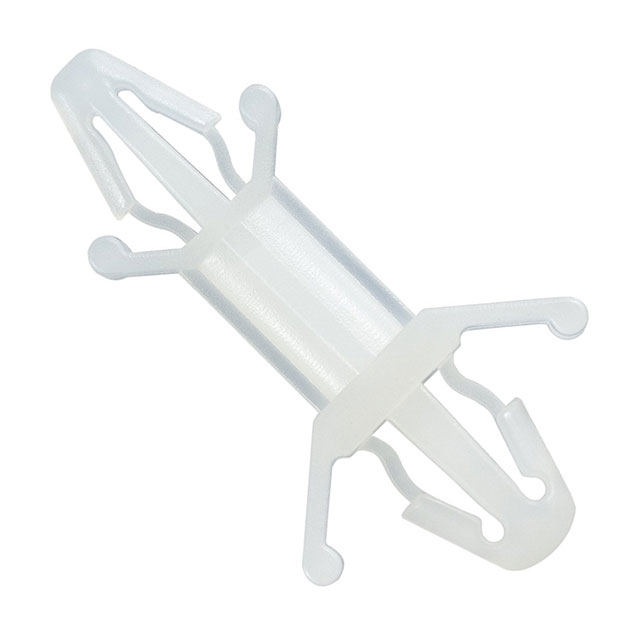

R6405-00

Obsolete

Harwin Inc.

4.80MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

Harwin Inc.

4.80MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6405-00

Between Board Height	0.189 in
Between Board Height	4.8 mm
Holding Type	Snap Lock
Length - Overall [x]	0.843 "
Length - Overall [x]	21.4 mm
Material	Nylon
Mounting Hole Diameter	4.8 mm
Mounting Hole Diameter	0.189 in
Mounting Panel Thickness	2.7 mm
Mounting Panel Thickness	0.106 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Mounting Panel Thickness	Mounting Panel Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Material	Holding Type	Mounting Hole Diameter	Mounting Hole Diameter
Harwin Inc. R6405-00	1.6 mm	0.063 in	0.189 in	4.8 mm	2.7 mm	0.106 in	0.843 "	21.4 mm	Snap Lock	0.157 "	3.99 mm	Nylon	Snap Lock	4.8 mm	0.189 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Snap Lock Nylon 0.189" (4.80mm)
