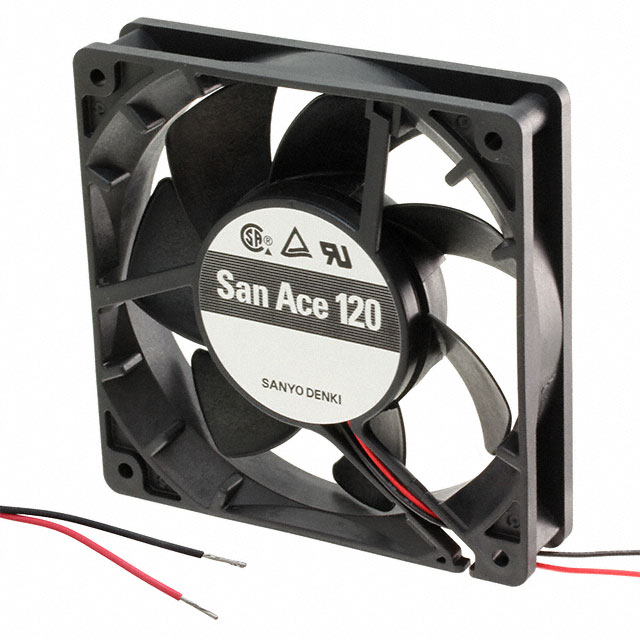

9S1212H402

Active

Sanyo Denki America Inc.

FAN AXIAL 119X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

9S1212H402

Active

Sanyo Denki America Inc.

FAN AXIAL 119X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9S1212H402

Air Flow	86.5 CFM
Air Flow	2.42 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	390 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	36 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	2700 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	44.8 Pa
Static Pressure	0.18 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	5 VDC
Width [y]	25 mm

9S1212 Series

Part	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	RPM	Noise	Width [y]	Voltage - Rated	Fan Type	Material - Blade	Bearing Type	Features	Approval Agency	Lifetime @ Temp.	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Termination	Material - Frame	Air Flow	Power (Watts)	Current Rating (Amps)
Sanyo Denki America Inc. 9S1212P4L011	7 V	13.8 VDC	48.1 CFM	1.35 mł/min	1500 RPM	36 dB	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL	40000 Hrs	0.06 in H2O	14.9 Pa	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	4 Wire Leads	Plastic
Sanyo Denki America Inc. 9S1212L401	7 V	13.8 VDC		1.35 mł/min	1500 RPM	17 dB	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	40000 Hrs	0.06 in H2O	14.9 Pa	70 °C	70 °C	-10 °C	-10 °C	119 mm	119 mm	3 Wire Leads	Plastic	48.1 CFM
Sanyo Denki America Inc. 9S1212L4D011	7 V	13.8 VDC		1.35 mł/min	1500 RPM	17 dB	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Sensor	CSA TUV UL	40000 Hrs	0.06 in H2O	14.9 Pa	70 °C	70 °C	-10 °C	-10 °C	119 mm	119 mm	3 Wire Leads	Plastic	48.1 CFM
Sanyo Denki America Inc. 9S1212M4D011	6 VDC	13.8 VDC		1.64 m³/min	1850 RPM	24 dB	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Sensor	CSA TUV UL	40000 Hrs	0.09 in H2O	22.4 Pa	70 °C	70 °C	-10 °C	-10 °C	119 mm	119 mm	3 Wire Leads	Plastic	58.6 CFM	1.56 W
Sanyo Denki America Inc. 9S1212M4011	6 VDC	13.8 VDC		1.64 m³/min	1850 RPM	24 dB	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	40000 Hrs	0.09 in H2O	22.4 Pa	70 °C	70 °C	-10 °C	-10 °C	119 mm	119 mm	3 Wire Leads	Plastic	58.6 CFM	1.56 W
Sanyo Denki America Inc. 9S1212F4011	5 VDC	13.8 VDC		1.98 mł/min	2200 RPM	30 dB(A)	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	40000 Hrs	0.12 in H2O	29.9 Pa	70 °C	70 °C	-10 °C	-10 °C	119 mm	119 mm	3 Wire Leads	Plastic	70.6 CFM	2.28 W	0.19 A
Sanyo Denki America Inc. 9S1212H402	5 VDC	13.2 VDC		2.42 m³/min	2700 RPM	36 dB	25 mm	12 VDC	Tubeaxial	Plastic	Ball		CSA TUV UL	40000 Hrs	0.18 in H2O	44.8 Pa	60 °C	60 °C	-10 °C	-10 °C	119 mm	119 mm	2 Wire Leads	Plastic	86.5 CFM		390 mA
Sanyo Denki America Inc. 9S1212P4F011	5 VDC	13.8 VDC		1.98 mł/min	2200 RPM	30 dB(A)	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL	40000 Hrs	0.12 in H2O	29.9 Pa	70 °C	70 °C	-10 °C	-10 °C	119 mm	119 mm	4 Wire Leads	Plastic	70.6 CFM	2.28 W	0.19 A
Sanyo Denki America Inc. 9S1212P4F01	5 VDC	13.8 VDC		1.98 mł/min	2200 RPM	30 dB(A)	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL	40000 Hrs	0.12 in H2O	29.9 Pa	70 °C	70 °C	-10 °C	-10 °C	119 mm	119 mm	4 Wire Leads	Plastic	70.6 CFM	2.28 W	0.19 A
Sanyo Denki America Inc. 9S1212H401	5 VDC	13.2 VDC		2.42 m³/min	2700 RPM	36 dB	25 mm	12 VDC	Tubeaxial	Plastic	Ball	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	40000 Hrs	0.18 in H2O	44.8 Pa	60 °C	60 °C	-10 °C	-10 °C	119 mm	119 mm	3 Wire Leads	Plastic	86.5 CFM		390 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.38
		10	$ 17.28
		30	$ 16.36
		60	$ 15.80
		120	$ 15.27
		270	$ 14.66
		510	$ 14.20

Description

General part information

9S1212 Series

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 86.5 CFM (2.42m³/min) 2 Wire Leads
