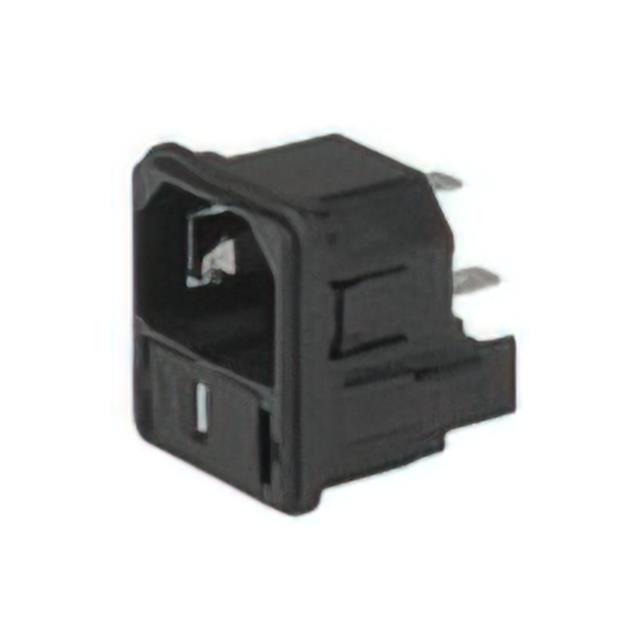

4301.2062

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); KEA; IP40

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); KEA; IP40

Technical Specifications

Parameters and characteristics for this part

Specification	4301.2062

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Voltage Selector
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	31.6 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Style	Current Rating - Appliance Inlet	Filter Type	Material Flammability Rating	Ingress Protection	Approval Agency	Termination	Termination	Panel Thickness [x]	Panel Thickness [x]	Connector Type	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Features	Panel Thickness [custom]	Panel Thickness [custom]	Panel Thickness	Panel Thickness
SCHURTER Inc. 4301.0504	IEC 320-C14	10 A	Unfiltered - Commercial	UL94 V-0	IP40	CCC CSA ENEC UL	0.189 " 4.8 mm	Quick Connect	2.5 mm	0.098 in	Receptacle Male Blades - Module	250 VAC	Fuse Holder	31.5 mm	27.5 mm	Panel Mount Snap-In
SCHURTER Inc. 4301.2061	IEC 320-C14	10 A	Unfiltered - Commercial	UL94 V-0	IP40	CCC CSA ENEC UL	0.189 " 4.8 mm	Quick Connect			Receptacle Male Blades - Module	250 VAC	Fuse Holder	31.6 mm	27.6 mm	Flange Panel Mount	Voltage Selector
SCHURTER Inc. 4301.2062	IEC 320-C14	10 A	Unfiltered - Commercial	UL94 V-0	IP40	CCC CSA ENEC UL	0.189 " 4.8 mm	Quick Connect			Receptacle Male Blades - Module	250 VAC	Fuse Holder	31.6 mm	27.6 mm	Panel Mount Snap-In	Voltage Selector	0.059 in	1.5 mm
SCHURTER Inc. 4301.3211	IEC 320-C14	10 A	Unfiltered - Commercial	UL94 V-0	IP40	CCC CSA ENEC UL		Solder			Receptacle Male Blades - Module	250 VAC	Fuse Holder	31.6 mm	27.6 mm	Panel Mount Flange Through Hole Right Angle				8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
