BM12B-XASS-TF

Active

JST Sales America Inc.

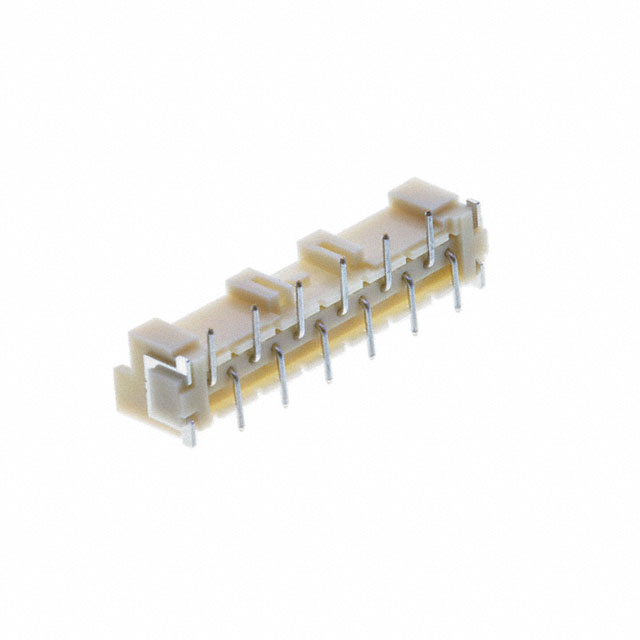

CONN HEADER SMD 12POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 12POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM12B-XASS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	11.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Height	Insulation Height	Number of Positions Loaded	Features	Insulation Material	Voltage Rating	Insulation Color	Termination	Contact Material	Contact Type	Fastening Type	Shrouding	Contact Finish - Post	Material Flammability Rating	Mated Stacking Heights	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Shape	Style	Current Rating (Amps)	Number of Rows
JST Sales America Inc. BM12B-XASS-TF	0.37 in	9.4 mm	All	Solder Retention	Nylon Polyamide (PA)	250 VDC	Natural	Solder	Copper Alloy	Male Pin	Locking Ramp	Shrouded - 4 Wall	Tin	UL94 V-0	11.9 mm	Surface Mount	-25 °C	85 °C	Header	2.5 mm	0.098 in	12	Circular	Board to Cable/Wire	3 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 12 position 0.098" (2.50mm)
