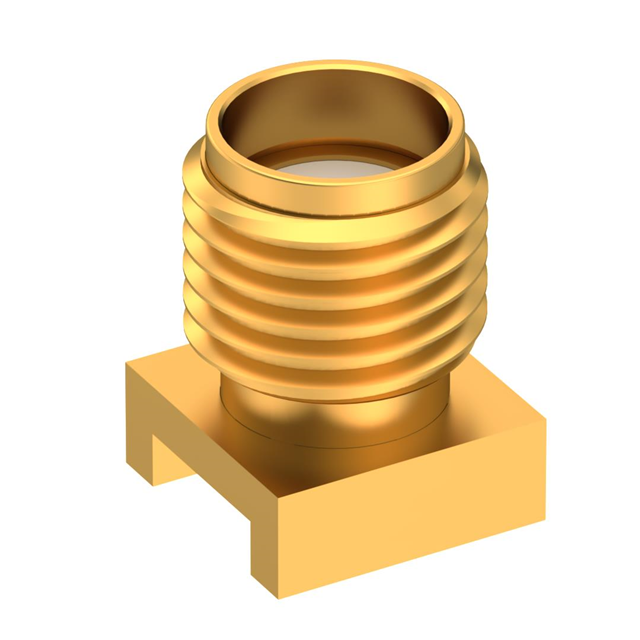

9650-1113-005
ActiveRadiall USA, Inc.
SMA F STR SMT
Deep-Dive with AI
Search across all available documentation for this part.
9650-1113-005
ActiveRadiall USA, Inc.
SMA F STR SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9650-1113-005 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.47 | |
| 10 | $ 20.55 | |||
| 25 | $ 19.66 | |||
| 50 | $ 19.03 | |||
| 100 | $ 18.39 | |||
| 250 | $ 17.38 | |||
| 500 | $ 16.87 | |||
Description
General part information
9650-1113 Series
SMA Connector Jack, Female Socket 50 Ohms Surface Mount Solder
Documents
Technical documentation and resources
No documents available
