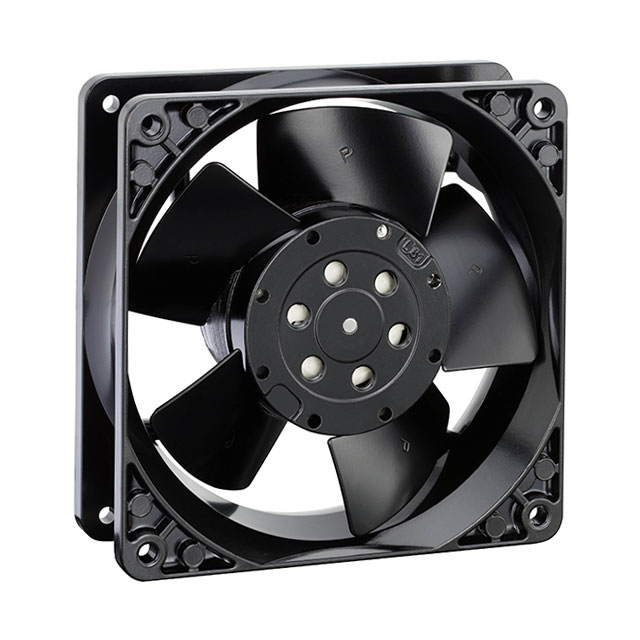

4580N

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 230VAC TERM

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 230VAC TERM

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	RPM	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Width [y]	Bearing Type	Air Flow	Air Flow	Power (Watts)	Voltage - Rated	Approval Agency	Material - Blade	Termination	Fan Type	Material - Frame
ebm-papst Inc. 4580N	119 mm	119 mm	2350 RPM	41 dB	-10 °C	55 °C	-10 °C	55 °C	40000 Hrs	38 mm	Sintec	2.02 mł/min	72.3 CFM	18 W	230 VAC	CE CSA UL VDE	Metal	2 Terminals	Tubeaxial	Metal
ebm-papst Inc. 4580ZW	119 mm	119 mm	1900 RPM	30 dB(A)	-10 °C	65 °C	-10 °C	65 °C	50000 Hrs	38 mm	Sintec	1.9 m³/min	67.7 CFM	13 W	230 VAC		Metal	2 Wire Leads	Tubeaxial	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Square - 119mm L x 119mm H Sintec 72.3 CFM (2.02mł/min) 2 Terminals
