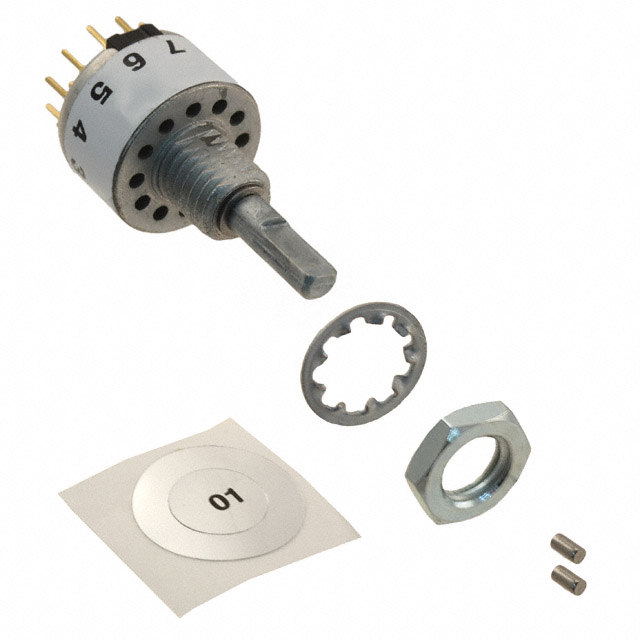

56DP30-01-2-AJN

Active

Grayhill Inc.

ROTARY SWITCH, 6 POSITION, 2 POLE, 30 °, 200 MA, 115 V, 56 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

56DP30-01-2-AJN

Active

Grayhill Inc.

ROTARY SWITCH, 6 POSITION, 2 POLE, 30 °, 200 MA, 115 V, 56 SERIES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	56DP30-01-2-AJN

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA
Depth Behind Panel [z]	9.58 mm
Index Stops	Adjustable
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Termination Style	PC Pin
Voltage Rating - AC	115 V
Voltage Rating - DC	30 V

56DP30 Series

Part	Mounting Type	Actuator Type [diameter]	Actuator Type	Contact Finish	Voltage Rating - AC	Current Rating (Amps)	Actuator Length [x]	Number of Decks [custom]	Contact Timing	Contact Material	Number of Poles per Deck	Depth Behind Panel [z]	Index Stops	Termination Style	Voltage Rating - DC	Circuit per Deck [custom]	Angle of Throw	Number of Positions [Max]	Number of Positions [Min]	Circuit per Deck [custom]	Circuit per Deck
Grayhill Inc. 56DP30-01-2-AJS	Panel Mount Through Hole	3.17 mm	Flatted	Silver	115 V	200 mA	9.53 mm	1	Shorting	Brass	2	9.58 mm	Adjustable	PC Pin	30 V	DP6T	30 °	6	2
Grayhill Inc. 56DP30-01-2-AJN	Panel Mount Through Hole	3.17 mm	Flatted	Silver	115 V	200 mA	9.53 mm	1	Non-Shorting	Brass	2	9.58 mm	Adjustable	PC Pin	30 V	DP6T	30 °	6	2
Grayhill Inc. 56DP30-01-4-AJN	Panel Mount Through Hole	3.17 mm	Flatted	Silver	115 V	200 mA	9.53 mm	1	Non-Shorting	Brass		9.58 mm	Adjustable	PC Pin	30 V		30 °	3	2	4P3T
Grayhill Inc. 56DP30-01-1-AJS	Panel Mount Through Hole	3.17 mm	Flatted	Silver	115 V	200 mA	9.53 mm	1	Shorting	Brass	1	9.58 mm	Adjustable	PC Pin	30 V		30 °	12	2		SP12T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.66
		5	$ 23.75
		10	$ 22.26
		25	$ 20.40
		50	$ 19.10
		100	$ 17.92
		250	$ 16.43
		500	$ 16.12
Newark	Each	25	$ 18.14
		50	$ 16.72

Description

General part information

56DP30 Series

The 56 series Single Deck Rotary Switch has extremely rugged construction and virtually limitless configurations. It has shorting or non-shorting wiping contacts with over 25 grams of contact force, flat opposite contacting position of pole number one, full circle of terminals, regardless of number of active positions. It is available with a screwdriver slotted shaft with dimensions. Available in the styles, angles of throw and pole/positions combinations shown in the choice and limitations chart.
