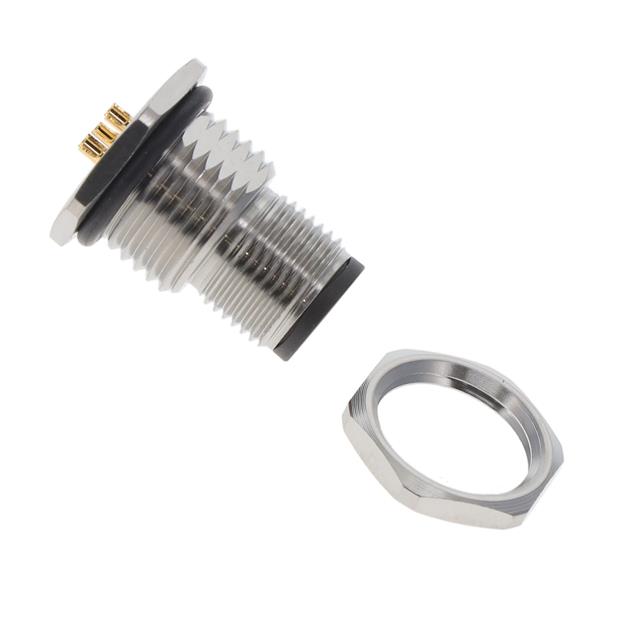

SM12A-05PMMS-SF8001

Active

Amphenol LTW

M12 A CODE PANEL STAINLESS STEEL

Search across all available documentation for this part.

Active

Amphenol LTW

M12 A CODE PANEL STAINLESS STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	SM12A-05PMMS-SF8001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Ingress Protection	IPX8/IPX9K - Water Resistant, Waterproof
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Orientation	Keyed
Shell Material	Metal
Shell Size - Insert	M12-5
Shielding	Shielded

Part	Orientation	Color	Shielding	Connector Type	Contact Finish - Mating	Shell Material	Mounting Feature	Shell Size - Insert	Ingress Protection	Contact Material	Insert Material
Amphenol LTW SM12A-05PMMS-SF8001	Keyed	Silver	Shielded	Male Pins Receptacle	Gold	Metal	Bulkhead - Front Side Nut	M12-5	IPX8/IPX9K - Water Resistant Waterproof	Copper Alloy	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
