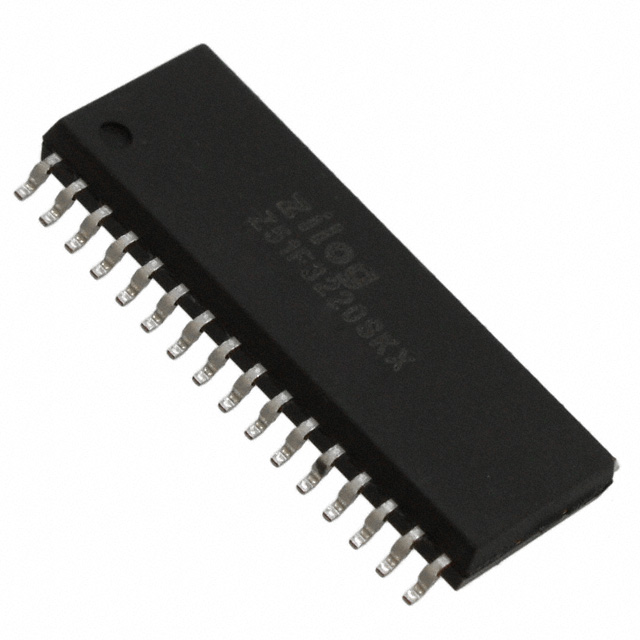

Z51F3220SKX
Zilog
IC MCU 8BIT 32KB FLASH 32SOIC
Deep-Dive with AI
Search across all available documentation for this part.
Z51F3220SKX
Zilog
IC MCU 8BIT 32KB FLASH 32SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Z51F3220SKX |
|---|---|
| Connectivity | I2C, SPI, UART/USART |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Data Converters | 12x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 30 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 0.295 in |
| Package / Case | 7.5 mm |
| Package / Case | 32-SOIC |
| Peripherals | POR, WDT, LVD, PWM, LCD |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 1 K |
| Speed | 16 MHz |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 3080 | $ 2.19 | |
Description
General part information
Z51F3220 Series
8051 Z8051 Microcontroller IC 8-Bit 16MHz 32KB (32K x 8) FLASH
