MP1531DM-LF-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG CONV TFT LCD 3OUT 16TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
MP1531DM-LF-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG CONV TFT LCD 3OUT 16TSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP1531DM-LF-P |
|---|---|
| Applications | TFT LCD, Converter |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

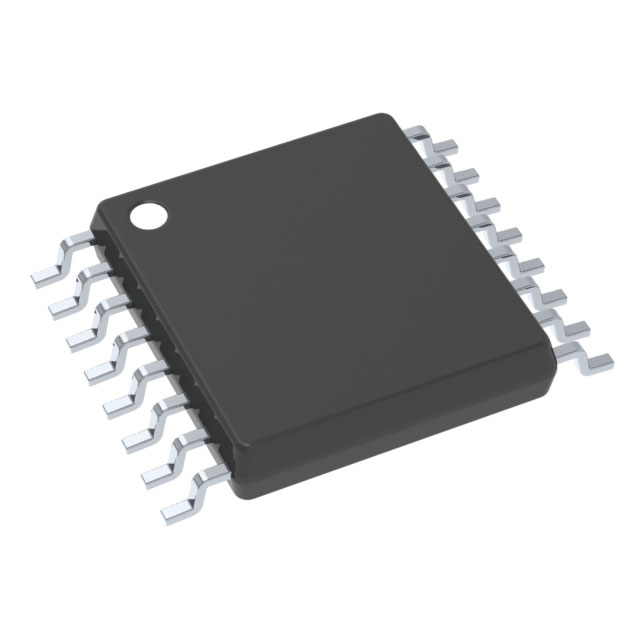

| Package / Case | 16-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 16-TSSOP |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.7 V |
| Voltage - Output [Max] | 22 V |
| Voltage - Output [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.56 | |
| 10 | $ 3.20 | |||
| 25 | $ 3.02 | |||
| 100 | $ 2.62 | |||
| 250 | $ 2.49 | |||
| Digi-Reel® | 1 | $ 3.56 | ||
| 10 | $ 3.20 | |||
| 25 | $ 3.02 | |||
| 100 | $ 2.62 | |||
| 250 | $ 2.49 | |||
| Tape & Reel (TR) | 500 | $ 1.66 | ||
Description
General part information
MP1531 Series
- Converter, TFT LCD Voltage Regulator IC 3 Output 16-TSSOP
Documents
Technical documentation and resources
No documents available
