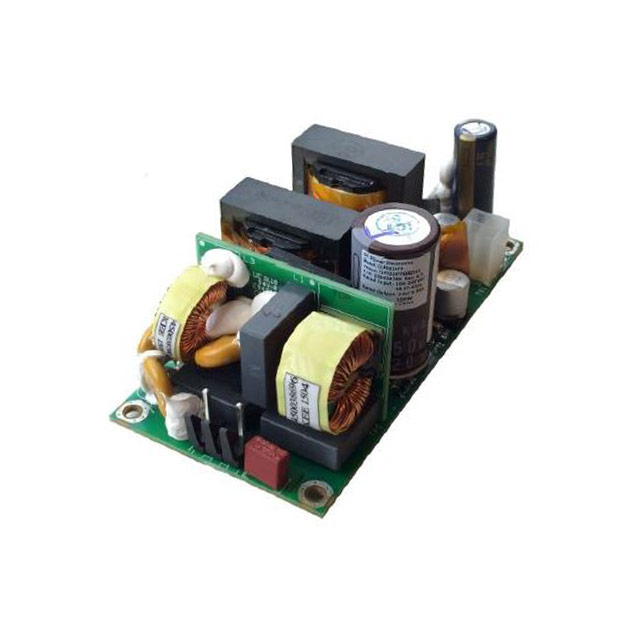

CLP0224FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLP0224FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLP0224FPXXXZ01A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CSA, UL, TUV, cUL, CB |
| Current - Output 1 | 8.33 A |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 121.16 | |
| 5 | $ 117.43 | |||
| 10 | $ 113.70 | |||
| 25 | $ 109.97 | |||
| 50 | $ 106.25 | |||
Description
General part information
CLP0224 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
