H2101B01

Active

Harwin Inc.

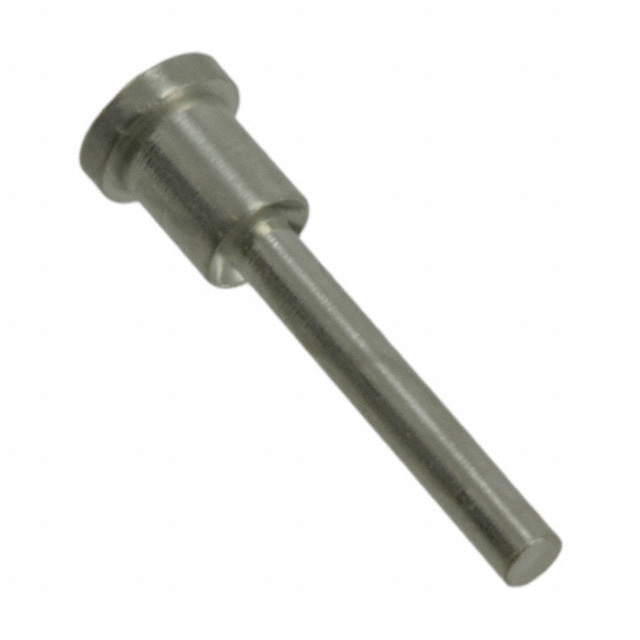

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2101B01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass
Flange Diameter [diameter]	2.39 mm
Flange Diameter [diameter]	0.094 in
Insulation	Non-Insulated
Length - Below Flange [x]	8.45 mm
Length - Below Flange [x]	0.333 in
Length - Overall [x]	0.353 in
Length - Overall [x]	8.97 mm
Mounting Hole Diameter [Max]	0.074 in
Mounting Hole Diameter [Max]	1.87 mm
Mounting Hole Diameter [Min]	0.07 in
Mounting Hole Diameter [Min]	1.78 mm
Mounting Type	Through Hole
Pin Size - Below Flange [diameter]	0.038 in
Pin Size - Below Flange [diameter]	0.97 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Mounting Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Terminal Style	Terminal Type	Length - Below Flange [x]	Length - Below Flange [x]	Contact Material	Length - Overall [x]	Length - Overall [x]	Board Thickness	Board Thickness	Contact Finish	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Insulation	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Length - Above Flange [x]	Length - Above Flange [x]
Harwin Inc. H2101B01	Through Hole	2.39 mm	0.094 in	Swage	Single End	PC Pin	8.45 mm	0.333 in	Brass	0.353 in	8.97 mm	1.6 mm	0.063 in	Tin	0.038 in	0.97 mm	Non-Insulated	0.07 in	1.78 mm	0.074 in	1.87 mm
Harwin Inc. H2101-01	Through Hole	2.39 mm	0.094 in	Swage	Double End	PC Pin	8.23 mm	0.324 in	Brass	0.563 in	14.3 mm	1.6 mm	0.063 in	Tin			Non-Insulated	0.07 in	1.78 mm	0.074 in	1.87 mm	0.219 in	5.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PC Pin Terminal Connector Through Hole Tin
