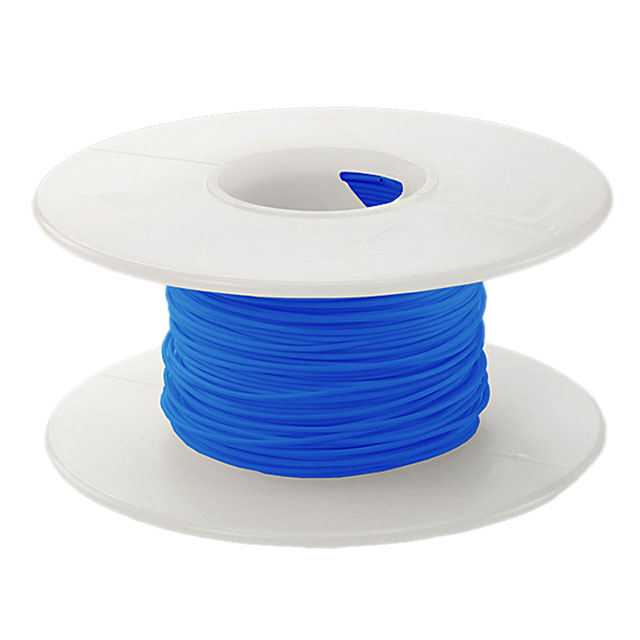

KSW24B-0100

Obsolete

OK INDUSTRIES

WIRE 24 AWG BLUE 100 FT CSW

Search across all available documentation for this part.

Obsolete

OK INDUSTRIES

WIRE 24 AWG BLUE 100 FT CSW

Technical Specifications

Parameters and characteristics for this part

Specification	KSW24B-0100

Conductor Diameter [diameter]	0.019 in
Conductor Diameter [diameter]	0.5 mm
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.03 in
Jacket (Insulation) Diameter [diameter]	0.76 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket Color	Blue
Length	30.5 m
Length [x]	100 ft
Operating Temperature	105 C
Ratings	UL Style 1422
Wire Gauge	24 AWG

Part	Conductor Material	Jacket Color	Jacket (Insulation) Material	Length [x]	Length	Conductor Plating	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Operating Temperature	Wire Gauge	Ratings
OK INDUSTRIES KSW24BLK-0100	Copper Bare	Black	Polyvinylidene Fluoride (PVDF)	100 ft	30.5 m	Silver	0.03 in	0.76 mm	0.019 in	0.5 mm	105 C	24 AWG	UL Style 1422
OK INDUSTRIES KSW24B-0100	Copper Bare	Blue	Polyvinylidene Fluoride (PVDF)	100 ft	30.5 m	Silver	0.03 in	0.76 mm	0.019 in	0.5 mm	105 C	24 AWG	UL Style 1422

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Wrap 24 AWG Blue Polyvinylidene Fluoride (PVDF) 100' (30.5m)
