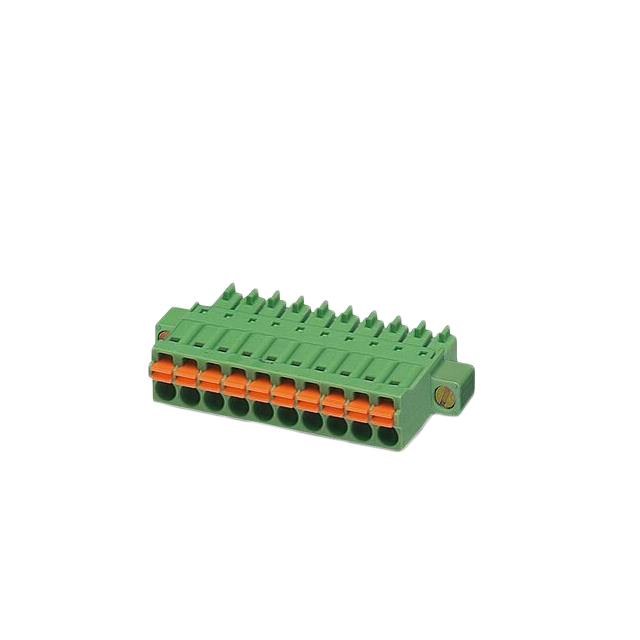

1966224

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 15 POS 3.5MM PITCH PLUG 24-16AWG SPRING

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 15 POS 3.5MM PITCH PLUG 24-16AWG SPRING

Technical Specifications

Parameters and characteristics for this part

Specification	1966224

Color	Green
Contact Mating Finish	Tin
Current - IEC	8 A
Current - UL	8 A
Features	Mating Flange
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	15
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	15
Termination Style	Screwless - Push-In Spring
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	150 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	10 mm

Pluggable Terminal Blocks 7 Pos 3.5mm pitch Plug 24-16AWG Spring

Part	Current - UL	Number of Levels	Termination Style	Mounting Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Positions Per Level	Features	Pitch [x]	Pitch [x]	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Strip Length	Voltage - UL	Color	Number of Positions	Current - IEC	Type	Housing Material	Material Flammability Rating
Phoenix Contact 1798375	8 A	1	Screwless - Push-In Spring	Free Hanging (In-Line)	24 AWG	16 AWG	Gold	10	Mating Flange	0.15 in	3.81 mm	160 V	0.2 mm²	1.5 mm²	10 mm	150 V	Black	10	8 A	Plug Female Sockets
Phoenix Contact 1966224	8 A	1	Screwless - Push-In Spring	Free Hanging (In-Line)	24 AWG	16 AWG	Tin	15	Mating Flange	0.138 in	3.5 mm	320 V	0.2 mm²	1.5 mm²	10 mm	150 V	Green	15	8 A	Plug Female Sockets	Polyamide (PA) Nylon	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.30
Sager	N/A	50	$ 12.13
		150	$ 11.69

General part information

Pluggable Terminal Blocks 7 Pos 3.5mm pitch Plug 24-16AWG Spring
