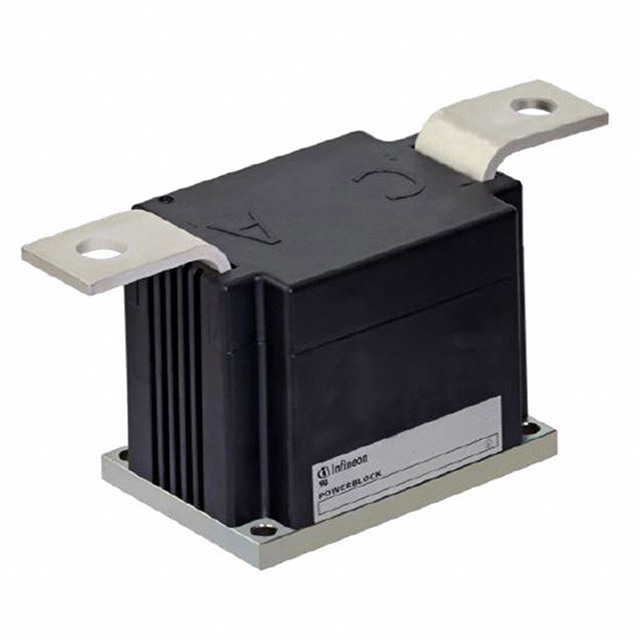

TZ800N18KOFTIMHPSA1

Obsolete

Infineon Technologies

SCR MODULE 1800V 1500A MODULE

Search across all available documentation for this part.

Obsolete

Infineon Technologies

SCR MODULE 1800V 1500A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	TZ800N18KOFTIMHPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	500 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	35000 A
Current - On State (It (AV)) (Max) [Max]	819 A
Current - On State (It (RMS)) (Max) [Max]	1500 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Single
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.8 kV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Mounting Type	Structure	Number of SCRs, Diodes	Current - On State (It (AV)) (Max) [Max]
Infineon Technologies TZ800N18KOFTIMHPSA1	35000 A	2 V	1500 A	Module	1.8 kV	250 mA	125 °C	-40 °C	500 mA	Chassis Mount	Single	1 SCR	819 A
