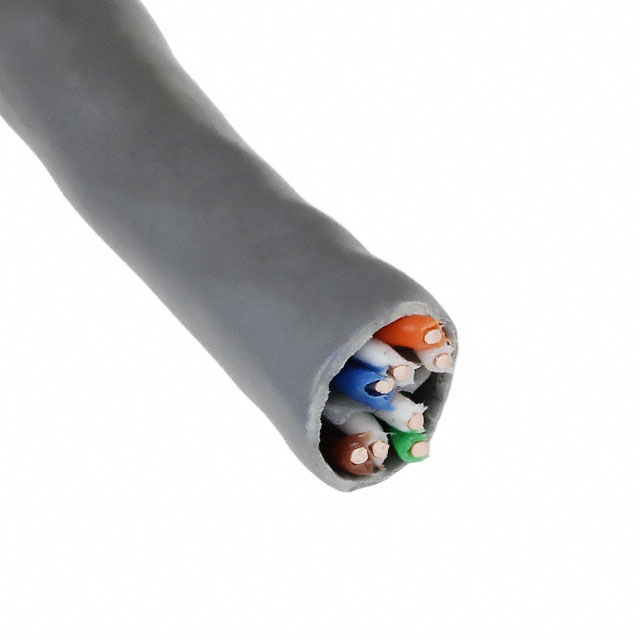

7131863.2R

Active

Prysmian Group

CABLE CAT6 8CON 23AWG GRAY 2000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE CAT6 8CON 23AWG GRAY 2000'

Technical Specifications

Parameters and characteristics for this part

Specification	7131863.2R

Cable Type	Multi-Pair, Cat6
Conductor Insulation	Fluoropolymer
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.2 in
Jacket (Insulation) Diameter [diameter]	5.08 mm
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	609.6 m
Length [x]	2000 ft
Number of Conductors	8
Wire Gauge	23 AWG

Part	Features	Wire Gauge	Number of Conductors	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length [x]	Length [x]	Conductor Strand	Jacket Color	Conductor Insulation	Jacket (Insulation) Material
Prysmian Group 7131863.2R	Rip Cord	23 AWG	8	Copper Bare	0.2 in	5.08 mm	Multi-Pair Cat6	609.6 m	2000 ft	Solid	Gray	Fluoropolymer	Plenum Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable Gray 23 AWG 2000.0' (609.6m)

Technical documentation and resources

No documents available
