XQEGRN-H2-0000-000000D02

Active

Cree LED

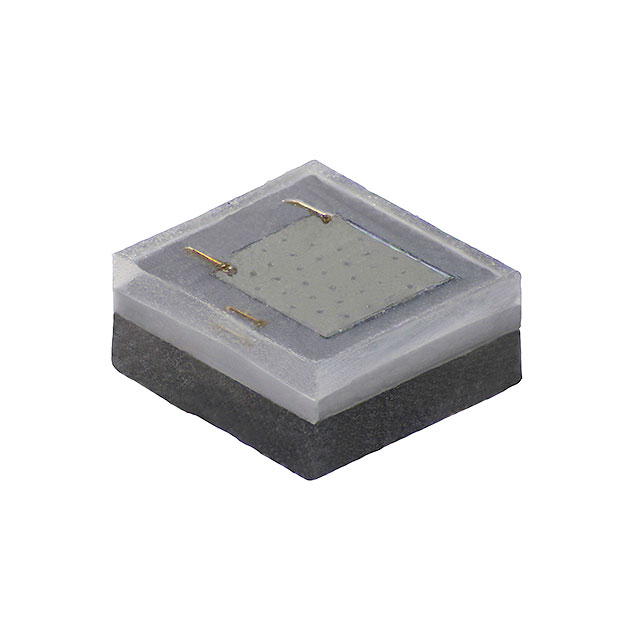

XLAMP XQ-E HI GREEN LIGHT EMITTING DIODE

Deep-Dive with AI

Search across all available documentation for this part.

XQEGRN-H2-0000-000000D02

Active

Cree LED

XLAMP XQ-E HI GREEN LIGHT EMITTING DIODE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XQEGRN-H2-0000-000000D02

Color	Green
Current - Max [Max]	1.5 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Lumens/Watt @ Current - Test	111 lm/W
Luminous Flux @ Current/Temperature	111 lm
Mounting Type	Surface Mount
Package / Case	0606, 1616 Metric
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	0606
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.85 V
Wavelength	525 nm

XQEGRN Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Package / Case	Lumens/Watt @ Current - Test	Current - Test	Current - Max [Max]	Mounting Type	Supplier Device Package	Viewing Angle	Wavelength	Wavelength [Min]	Wavelength [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Height - Seated (Max) [Max]	Thermal Resistance of Package [diameter]
Cree LED XQEGRN-H0-0000-000000G01	0.035 "	0.9 mm	Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm	135 lm	0606 1616 Metric	135 lm/W	350 mA	1.5 A	Surface Mount	0606	130 °	528 nm	520 nm	535 nm
Cree LED XQEGRN-H0-0000-000000H01	0.035 "	0.9 mm	Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm	144 lm	0606 1616 Metric	144 lm/W	350 mA	1.5 A	Surface Mount	0606	130 °	528 nm	520 nm	535 nm	139 lm	148 lm
Cree LED XQEGRN-00-0000-000000H01	0.068 "		Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm	144 lm	0606 1616 Metric	144 lm/W	350 mA	1.5 A	Surface Mount	0606	125 °	528 nm	520 nm	535 nm	139 lm	148 lm	1.73 mm
Cree LED XQEGRN-H2-0000-000000B03	0.068 "		Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm	97 lm	0606 1616 Metric	87 lm/W	350 mA	1 A	Surface Mount	SMD	130 °	530 nm					1.73 mm	7 °C/W
Cree LED XQEGRN-00-0000-000000K02	0.068 "		Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm	160 lm	0606 1616 Metric	160 lm/W	350 mA	1.5 A	Surface Mount	0606	125 °	525 nm					1.73 mm
Cree LED XQEGRN-H2-0000-000000D02	0.031 "	0.8 mm	Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm	111 lm	0606 1616 Metric	111 lm/W	350 mA	1.5 A	Surface Mount	0606	130 °	525 nm
Cree LED XQEGRN-H0-0000-000000J02	0.035 "	0.9 mm	Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm		0606 1616 Metric	153 lm/W	350 mA	1.5 A	Surface Mount	0606	130 °	525 nm
Cree LED XQEGRN-00-0000-000000G03	0.068 "		Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm	135 lm	0606 1616 Metric	135 lm/W	350 mA	1.5 A	Surface Mount	0606	125 °	530 nm					1.73 mm
Cree LED XQEGRN-00-0000-000000H02	0.068 "		Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm	144 lm	0606 1616 Metric	144 lm/W	350 mA	1.5 A	Surface Mount	0606	125 °	525 nm			139 lm	148 lm	1.73 mm
Cree LED XQEGRN-H0-0000-000000J01	0.035 "	0.9 mm	Green	2.85 V	0.063 in	1.6 mm	0.063 in	1.6 mm		0606 1616 Metric	153 lm/W	350 mA	1.5 A	Surface Mount	0606	130 °	528 nm	520 nm	535 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 2.01
Newark	Each	1	$ 2.60
		1000	$ 1.73
		25000	$ 1.63
		50000	$ 1.53

Description

General part information

XQEGRN Series

LED Lighting Color XLamp® XQ-E Green 525nm (520nm ~ 530nm) 0606 (1616 Metric)
