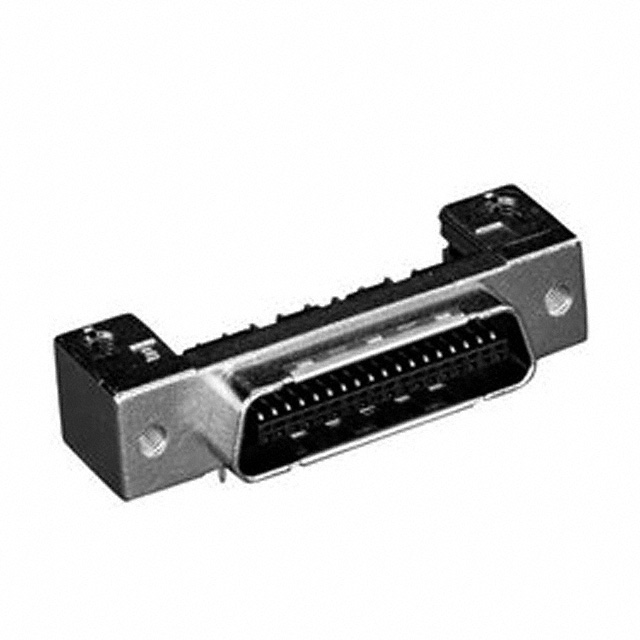

10126-5212PC - 101xx Series

10126-5212PC

Active
3M (TC)

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), PLUG, 101 SERIES, 26 CONTACTS, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMDR Selection GuideDatasheet+2
10126-5212PC - 101xx Series

10126-5212PC

Active
3M (TC)

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), PLUG, 101 SERIES, 26 CONTACTS, SOLDER

Deep-Dive with AI

DocumentsMDR Selection GuideDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification10126-5212PC
Connector StyleCenter Strip Contacts
Connector TypePlug
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesShielded
Flange FeatureM2.5
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions26
Number of Rows2
TerminationSolder
TypeBoard to Board

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 19.60
10$ 16.99
25$ 16.10
50$ 15.87
100$ 14.00
300$ 13.07
500$ 12.79
NewarkEach 100$ 15.50
250$ 14.76
500$ 13.82
1000$ 12.61

Description

General part information

10126 Series

26 Position Plug Connector Board to Board Panel Mount, Through Hole, Right Angle Solder
