9002-9023-003

Active

Radiall USA, Inc.

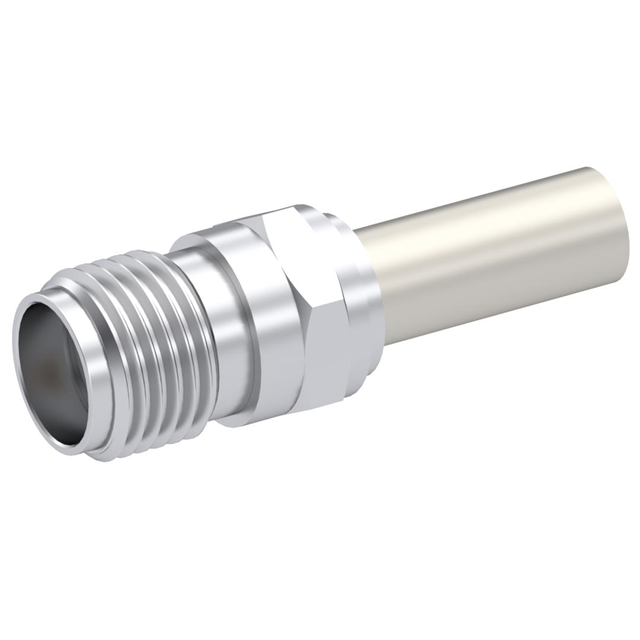

SMA F STR NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR NA CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	9002-9023-003

Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Shield Termination	Contact Termination	Center Contact Plating	Mating Cycles	Cable Group	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Frequency - Max [Max]	Connector Style	Body Material	Dielectric Material	Connector Type	Center Contact Material	Impedance	Mounting Type
Radiall USA, Inc. 9002-9023-003	Crimp	Crimp	Gold	500	316 RG-174	250 VDC	-65 ░C	165 °C	1	18 GHz	SMA	Stainless Steel	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Beryllium Copper	50 Ohms	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
