SF500G-204005

Active

CUI Devices

THERM PAD 20MMX40MM BLUE

Search across all available documentation for this part.

Active

CUI Devices

THERM PAD 20MMX40MM BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Shape	Thickness	Thickness	Outline [x]	Outline [y]	Adhesive	Thermal Conductivity	Color
CUI Devices SF500G-204005	Rectangular	0.0197 in	0.5 mm	20 mm	40 mm	Tacky - Both Sides	3.5 W/m-K	Blue
CUI Devices SF500G-101005	Square	0.0197 in	0.5 mm	10 mm	10 mm	Tacky - Both Sides	3.5 W/m-K	Blue
CUI Devices SF500-202005	Square	0.0197 in	0.5 mm	20 mm	20 mm	Tacky - Both Sides	3 W/m-K	Blue
CUI Devices SF500G-313005	Rectangular	0.0197 in	0.5 mm	31 mm	30 mm	Tacky - Both Sides	3.5 W/m-K	Blue
CUI Devices SF500G-707005	Square	0.0197 in	0.5 mm	70 mm	70 mm	Tacky - Both Sides	3.5 W/m-K	Blue
CUI Devices SF500G-303005	Square	0.0197 in	0.5 mm	30 mm	30 mm	Tacky - Both Sides	3.5 W/m-K	Blue
CUI Devices SF500-404005	Square	0.0197 in	0.5 mm	40 mm	40 mm	Tacky - Both Sides	3 W/m-K	Blue
CUI Devices SF500G-202005	Square	0.0197 in	0.5 mm	20 mm	20 mm	Tacky - Both Sides	3.5 W/m-K	Blue
CUI Devices SF500-505005	Square	0.0197 in	0.5 mm	50 mm	50 mm	Tacky - Both Sides	3 W/m-K	Blue
CUI Devices SF500-265005	Rectangular	0.0197 in	0.5 mm	26 mm	50 mm	Tacky - Both Sides	3 W/m-K	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

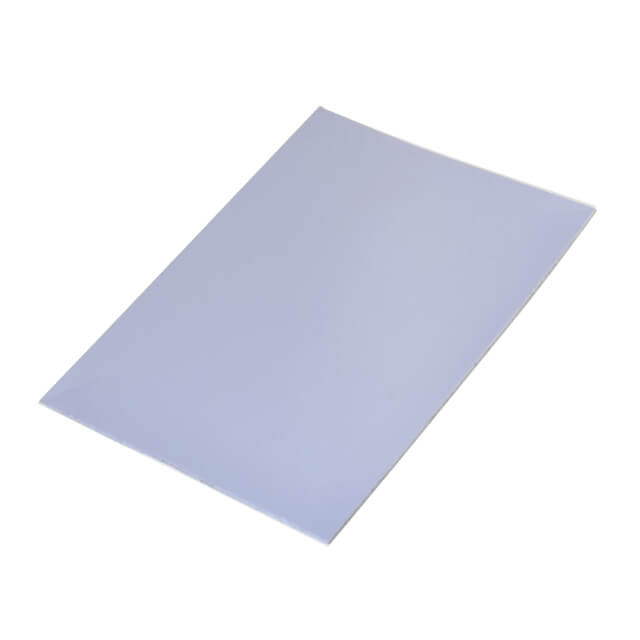

Thermal Pad Blue 20.00mm x 40.00mm Rectangular Tacky - Both Sides
