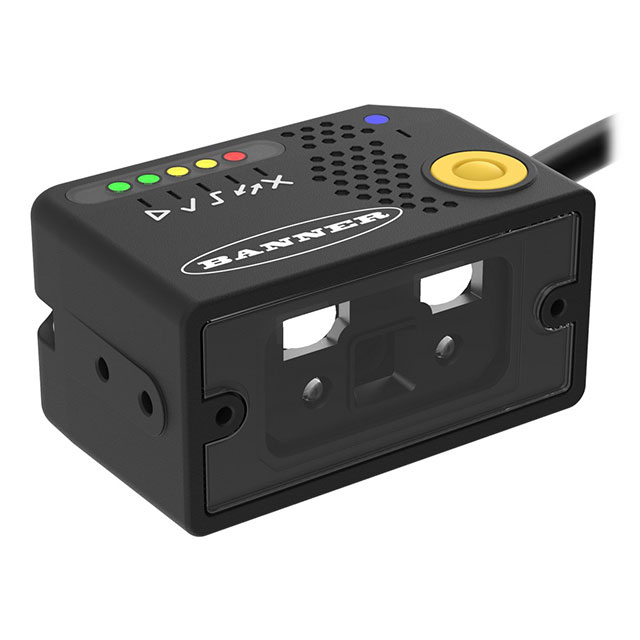

ABR3009-WSU2

Active

BANNER ENGINEERING

BARCODE SCANNER, 752 X 480 PIXELS, GRAYSCALE, USB, PC INTERFACE, 1D / 2D, ABR 3000 SERIES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

BARCODE SCANNER, 752 X 480 PIXELS, GRAYSCALE, USB, PC INTERFACE, 1D / 2D, ABR 3000 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	ABR3009-WSU2

Image Type	Monochrome
Ingress Protection	IP65 - Dust Tight, Water Resistant
Light Source	Integrated (White)
Mounting Type	Chassis Mount
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	0 °C
Resolution	0.4 MP, 360960 Pixels
Resolution [x]	752
Resolution [y]	480
Sensor Type	CMOS
Termination Style	Cable with Connector
Type	Bar Code Reader
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Sensor Type	Light Source	Termination Style	Image Type	Type	Mounting Type	Operating Temperature [Max]	Resolution	Resolution [x]	Resolution [y]
BANNER ENGINEERING ABR3009-WSU1	5 V	30 VDC	IP65 - Dust Tight Water Resistant	CMOS	Integrated (White)	Cable with Connector	Monochrome	Bar Code Reader	Chassis Mount	45 °C	0.4 MP 360960 Pixels	752	480
BANNER ENGINEERING ABR3009-WSU2	5 V	30 VDC	IP65 - Dust Tight Water Resistant	CMOS	Integrated (White)	Cable with Connector	Monochrome	Bar Code Reader	Chassis Mount	45 °C	0.4 MP 360960 Pixels	752	480
BANNER ENGINEERING ABR3009-WSE2	5 V	30 VDC	IP65 - Dust Tight Water Resistant	CMOS	Integrated (White)	Cable with Connector	Monochrome	Bar Code Reader	Chassis Mount	45 °C	0.4 MP 360960 Pixels	752	480

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BARCODE SCANNER, 752 X 480 PIXELS, GRAYSCALE, USB, PC INTERFACE, 1D / 2D, ABR 3000 SERIES
